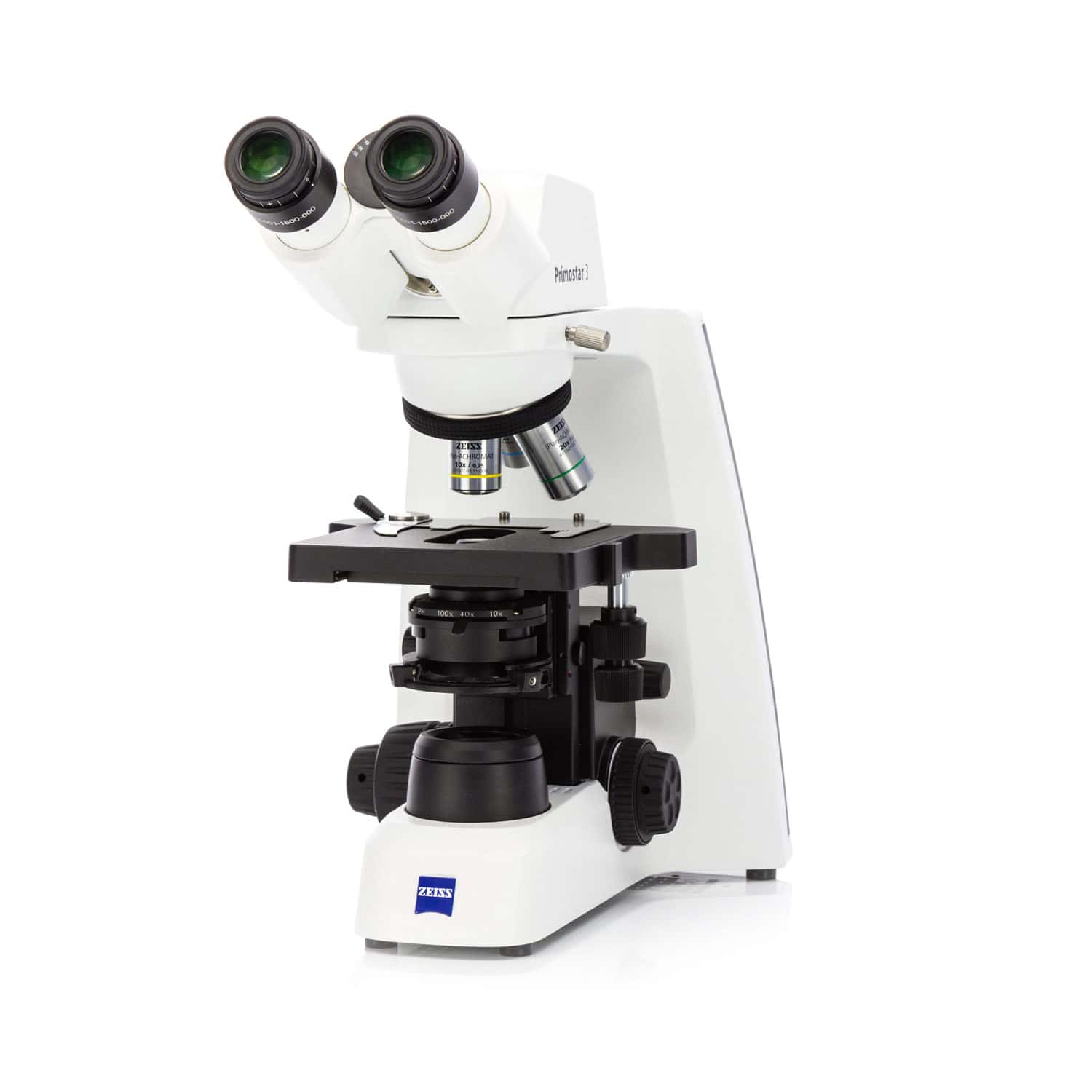

Zeiss Primostar 3 Phase Contrast Microscope with Abbe condenser
Zeiss Primostar 3 Phase Contrast Microscope with Abbe condenser
Carl Zeiss
Regular price
£3,491.00 GBP
Regular price
Sale price
£3,491.00 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
The Zeiss Primostar 3 phase-contrast microscope enableshigh-contrast imaging of transparent, unstained specimens, such as living cells, thanks to thePh2 objective. The 5x revolving nosepiece is also equipped with three additionaliPlan achromatic objectives(4x, 10x and 40x), which allow it to be used as a normal transmitted light microscope. Thefull Köhler illuminationcan be individually adjusted and enables optimal illumination of the specimen.
Details
- With Ph2 lens for 40x magnification
- With halogen illumination
- 2 eyepieces with SF22/10x
- iPlan achromatic objectives
- Full Köhler
Overview
- Zeiss Primostar 3 phase contrast microscope
- With phase contrast objective Ph2
- Enables phase contrast microscopy at 400x magnification
- With full-Koehler stand, adjustable field diaphragm
- Illumination: Halogen 6 V 30 W
- Choice of Abbe condenser, 0.9/1.25 or Abbe Rev. phase contrast turret
- Binocular tube 25°/20
- With adjustable interpupillary distance between 48 mm and 75 mm
- Eyepieces: 10x/SF22
- Eyepieces with eyecup
- 5x revolving nosepiece
- iPlan achromatic objectives: 40x, 10x, 40x, Ph2
- Slider H/Ph2
- Incl. colour filter set (blue, green, yellow)
- Stage drive right
- Diopter d=30 mm
- With light manager
- ECO mode
- Delivery contents: Microscope, power supply unit with country-specific adapters, dust cover and colour filter set
