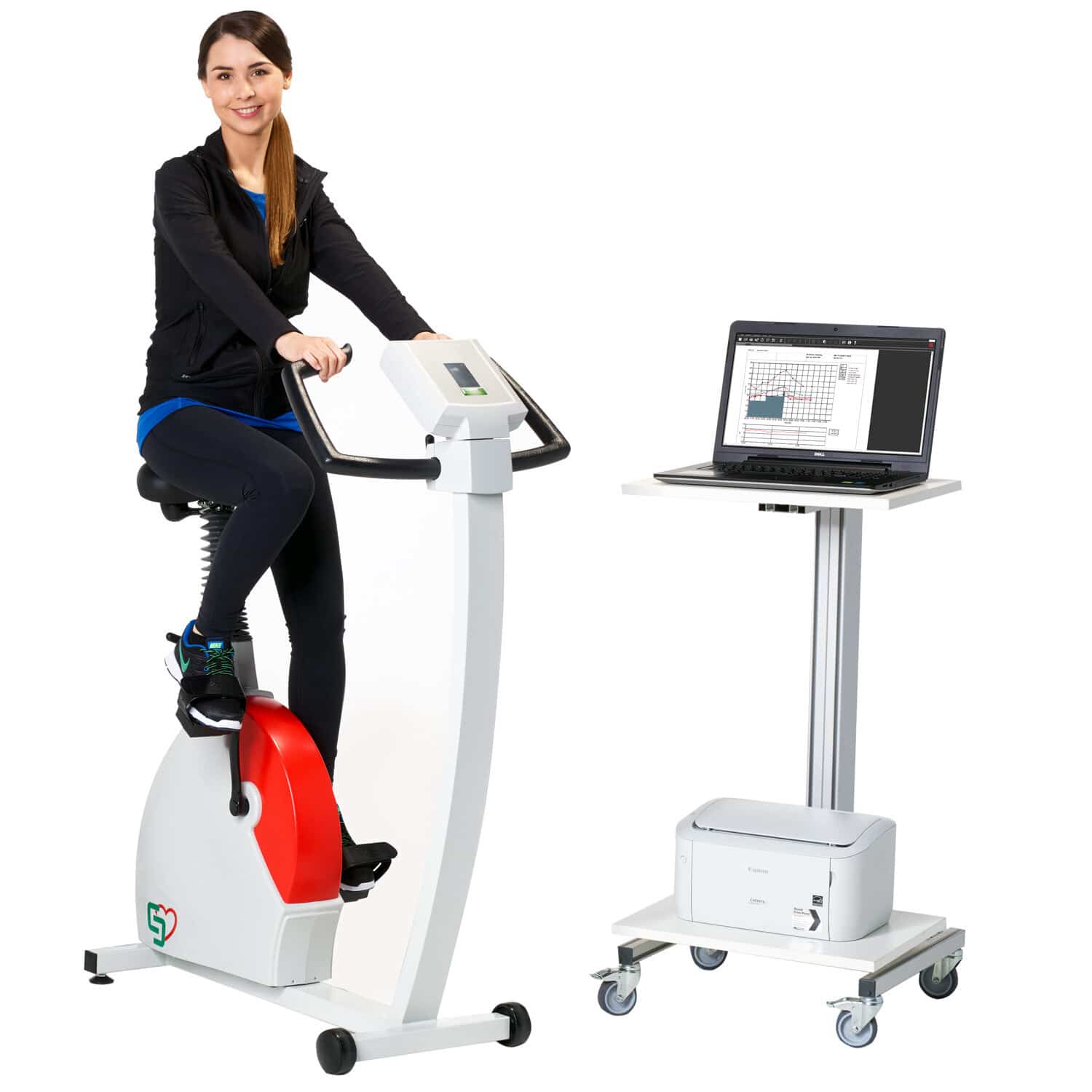

SmartScript Ergometry Basic Package

SmartScript Ergometry Basic Package

Dr. Gerhard Schmidt

Regular price £6,616.04 GBP
Regular price Sale price £6,616.04 GBP
Sale Sold out

Product Description

The SmartScript Ergometrynetwork-compatible PC ECG systemfrom Dr Gerhard Schmidt is used to performresting, rhythm and stress ECGs. In emergency situations, the recording of ECGs is also possible without entering specific patient data. The12-lead ECG examinationsare automatically stored in aclient/serverSQL databaseand thetrend curvesof heart rate, load and blood pressure are also stored in the database.


  • Network-compatible PC ECG system
  • Includes practice EDP and rhythm ECG software
  • Simple and user-friendly operation
  • Fully automatic control of load, speed and incline
  • Available in various complete packages


  • SmartScript Ergometry from Dr. Gerhard Schmidt
  • Network-compatible PC ECG system
  • For performing resting, rhythm and stress ECGs
  • Recording of emergency ECGs also possible without entering patient data
  • Storage of the 12-lead examination in client/server SQL database
  • Documents trend curves of heart rate, load, blood pressure
  • Consists of recording, evaluation, configuration and installation programme
  • Can be connected to 5 workstations of the practice EDP
  • Simple and user-friendly operation
  • Includes large network licence for up to 5 workstations
  • Rhythm ECG software allows up to 99 minutes of recording
  • 12-lead ergometry software offers up to 20 load profiles
  • Fully automatic control of load, speed and incline via PC
  • Options: SmartWatch, ECG interpretation, vector & lactate software
  • Available in four different complete packages
  • Manufacturer's warranty: 1 year
  • Patient size: 140 - 210 cm
  • Patient weight: max. 160 kg
  • Footprint: 45 x 83 cm
  • Handlebar: 360 degrees rotatable
  • Display unit: 180 degrees rotatable
  • Display: TFT display 57 x 43 mm (VGA, resolution in 65000 colours)
  • Operating voltage: 230 - 240 V with 50 Hz
  • Virtually noiseless and maintenance-free drive unit with poly-V belt (no chain)
  • Computer-controlled eddy current brake with permanent torque measurement
  • Speed range: 13 to 130 n/min
  • Load range: 1 - 20 W (speed-dependent); 20 - 400 W (speed-independent)
  • Load setting: externally by measuring device (ECG, PC, etc.)
  • Time intervals: 1 - 99 minutes
  • Interfaces: RS232 (galvanically isolated)
  • Table model version for mounting on tables and worktops
  • Small vacuum unit with telescopic support arm
  • Offers a high level of operating comfort and is designed for one-hand operation
  • Support arm with long reach
  • With control technology in four pressure levels
  • Automatic blow-out feature before and after each use
