• Pc Ecg Biocare Ecg-2000 Including Various Electrodes Usb Cable & Patient Cable
1 1
SKU: 131910 | EAN: 6937683402019

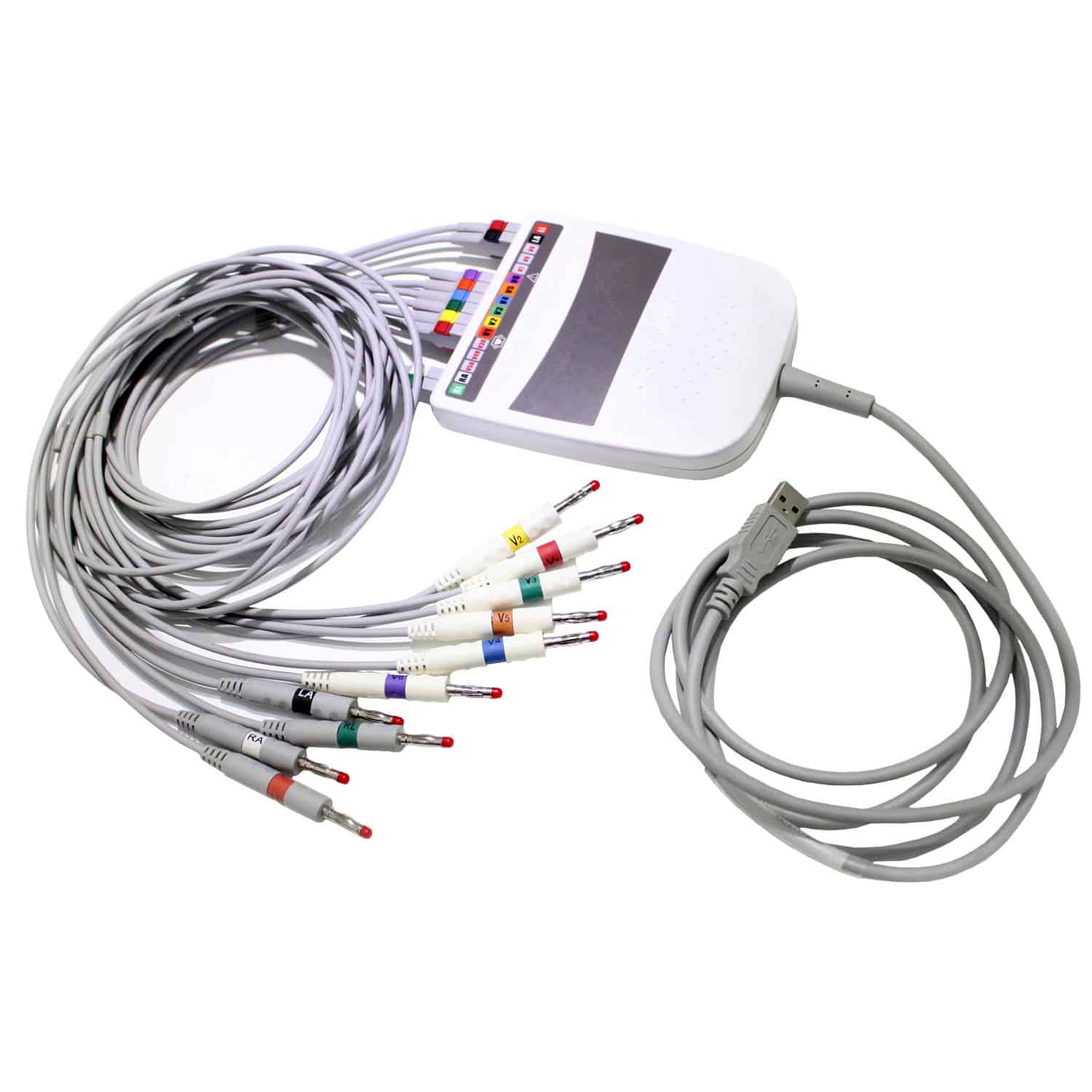

PC ECG Biocare ECG-2000 without laptop

PC ECG Biocare ECG-2000 without laptop

Biocare

£1,215.00 GBP
£1,215.00 GBP
Sale Sold out

Product Description

The 12-lead PC ECG Biocare ECG-2000 is supplied with the appropriate PC software andenables the measurement, processing and interpretation of ECGs directly on the screenvia USB connection. Thepaperlessworkflow not only saves time, but also money. Due to the low weight and thehandyformat, the ECG is also ideally suited for mobile use in conjunction with a laptop (optionally included).

Details

  • 12-lead PC ECG with real-time curve representation
  • Software with many practical functions
  • Pacemaker recognition
  • Easy reporting
  • Delivered as set with electrodes and leads

Overview

  • PC ECG Biocare ECG-2000
  • PC-based, 12-lead resting ECG machine
  • Real time graphic representation
  • Analysis is performed automatically based on the patient's age
  • ECGs directly measured and edited on the screen
  • Easy reporting in all common data formats (BMP, JPG, Word, XML, Dicom)
  • Easy integration into the practice EDP system via GDT interface
  • Comprehensive storage and printing options
  • Pacemaker detection and analysis
  • Data transfer and power supply via USB
  • Delivery includes all cables and electrodes
  • Splittable line for easy and economical maintenance due to splitting design
  • Optionally available without or with laptop (HP or equivalent, with current operating system)
  • Simultaneous acquisition of 12.15 leads via the new generation high performance system
  • High-performance chip with anti-drift technology
  • High-performance data management software
  • Pathological results are shown in colour
  • Sampling rate: 1,000 Hz
  • USB port
  • A-D converter 24-bit
  • Frequency response of 0.05 - 250 Hz, purpose-built for paediatric diagnostics
  • Sensitivity: 5 mm/mV, 10 mm/mV, 20 mm/mV
  • Analysis functions: VCG, VLP, HRV, HFECG, FCG, HRT and QT
  • Language selection: English, Russian, French, German, Spanish, Italian, Portuguese, Polish, Czech, Finnish,
  • Operating system: Windows 7 or later
  • Computer (recommended configuration): P4 2.0 GHz or higher; HDD: 80 GB or more
  • The computer has to meet the IEC 60950-1 guidelines
  • USB port
  • Storage: 512 MB or more
  • High resolution colour display: 1024 x 768 or better
  • Printer: print resolution ≥ 600 dpi, laser printer or high-quality inkjet printers are recommended (do not use dot-matrix printers)
  • Biocare ECG-2000 recorder
  • Patient cable
  • USB cable
  • Software
  • Clip and suction electrodes
  • 6 button adapters for ECG
  • Adhesive electrodes
  • Optionally available with notebook
  • 15,6" HP Notebook 255 G8
  • Full-HD display anti-reflective
  • Island keyboard with integrated numeric keypad
  • Touchpad with multi-touch gesture support
  • Two speakers
  • Memory: 8 GB
  • USB 3.1 Type-C (data transfer only)
  • 2x USB 3.1 Type-A
  • HDMI 1.4b
  • SD card reader
  • 720p HD webcam with microphone
  • Li-Ion battery
  • Housing: Jet Black
  • Weight: 1.74 kg
  • Dimensions: 35.8 x 24.2 x 1.99 cm (W x D x H)
  • Power supply
