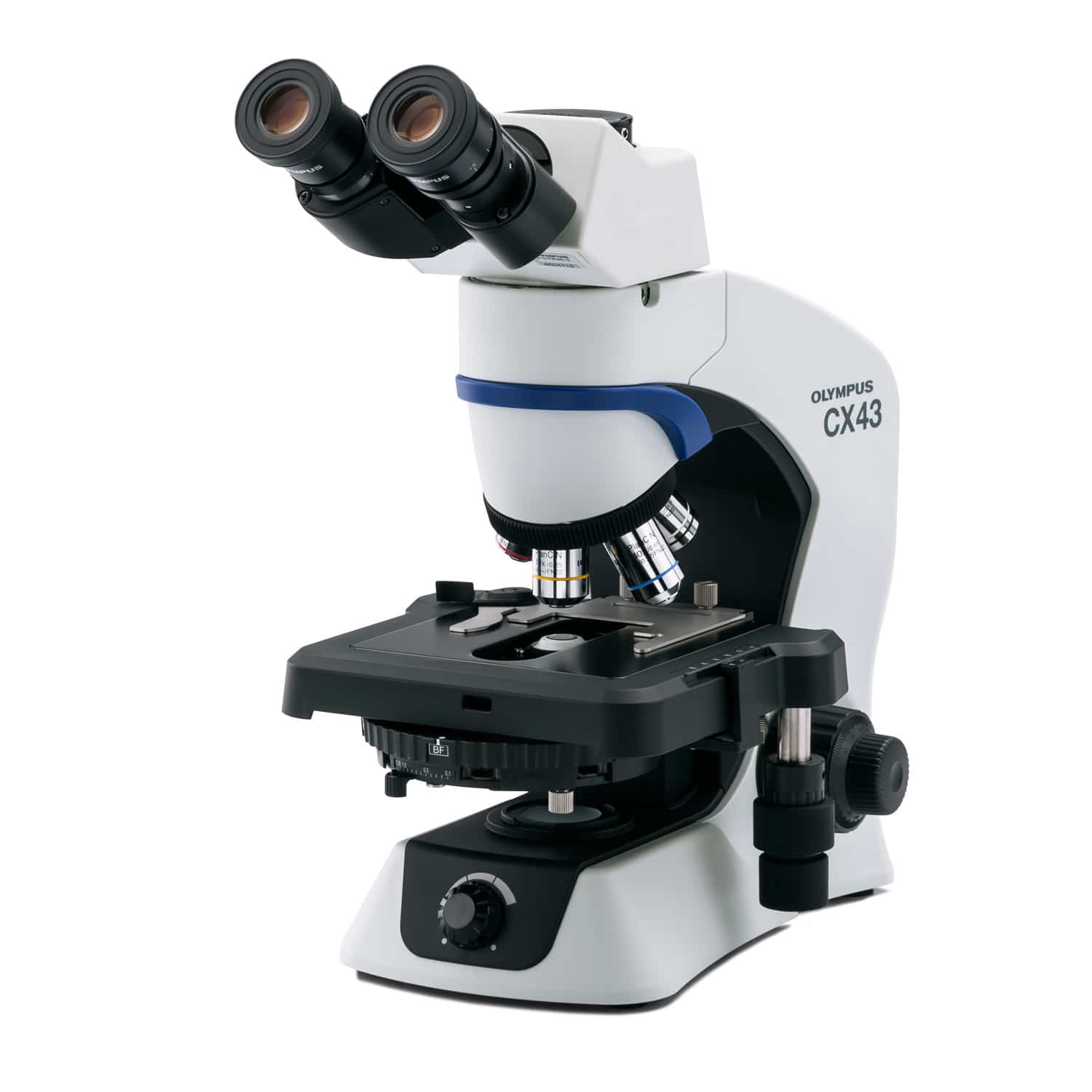

Olympus CX43 Fluorescence Microscope
Olympus CX43 Fluorescence Microscope
Olympus
Regular price
£12,543.45 GBP
Regular price
Sale price
£12,543.45 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
The Olympus CX43 fluorescence microscope is equipped with a reflected fluorescence illuminatorwith integratedLED illumination for blue excitation(470 nm). Additionally, the microscope has a 7-position filter wheel with appropriate apertures, FL with shutter and a disc for dark field microscopy. The 5x objective nosepiece contains4 high-quality plan achromatic objectives(4x, 10x, 40x and 100x/oil).
Details
- With reflected fluorescence illuminator
- 4 high-quality plan achromatic objectives
- Integrated dark field disc
- Oculars with large field of vision (20 mm)
- Dioptre adjustment on the left side
Overview
- Olympus CX43 fluorescence microscope
- With reflected fluorescence illuminator, contains one LED for blue excitation in a range of 470nm
- With 5x objective nosepiece (tilted to the back)
- Objectives: plan achromatic, 4x, 10x, 40x and 100x/oil
- Suitable for oil immersion microscopy
- Suitable for dark field microscopy
- With 7-position filter wheel: HF (4x-100x), 2X, F, Ph1, Ph2, Ph3, FL with shutter
- 30° tilted trinocular tube (binocular phototube)
- 2 wide field eyepieces: 10x magnification, FN20
- Dioptre adjustment on the left
- Beam path distribution: eyepieces 50 %, photo/video tube 50 %
- A U-SPT or a U-TV tube is needed for the camera option
- Eye distance adjustable between 48 and 75 mm
- Fine drive: 300 µm/rotation
- Cross table with spring clamp for standard microscope slides
- Integrated LED illumination
- Abbe condenser, NA 1.25
- Coarse and fine focal adjustment on the right
- Olympus microscope
- Fluorescent illuminator
- 4 plan achromatic objectives (4x, 10x, 40x, 100x/oil)
- Power cable and power supply unit
- Protective cover
- Allen key
- Instructions for use
