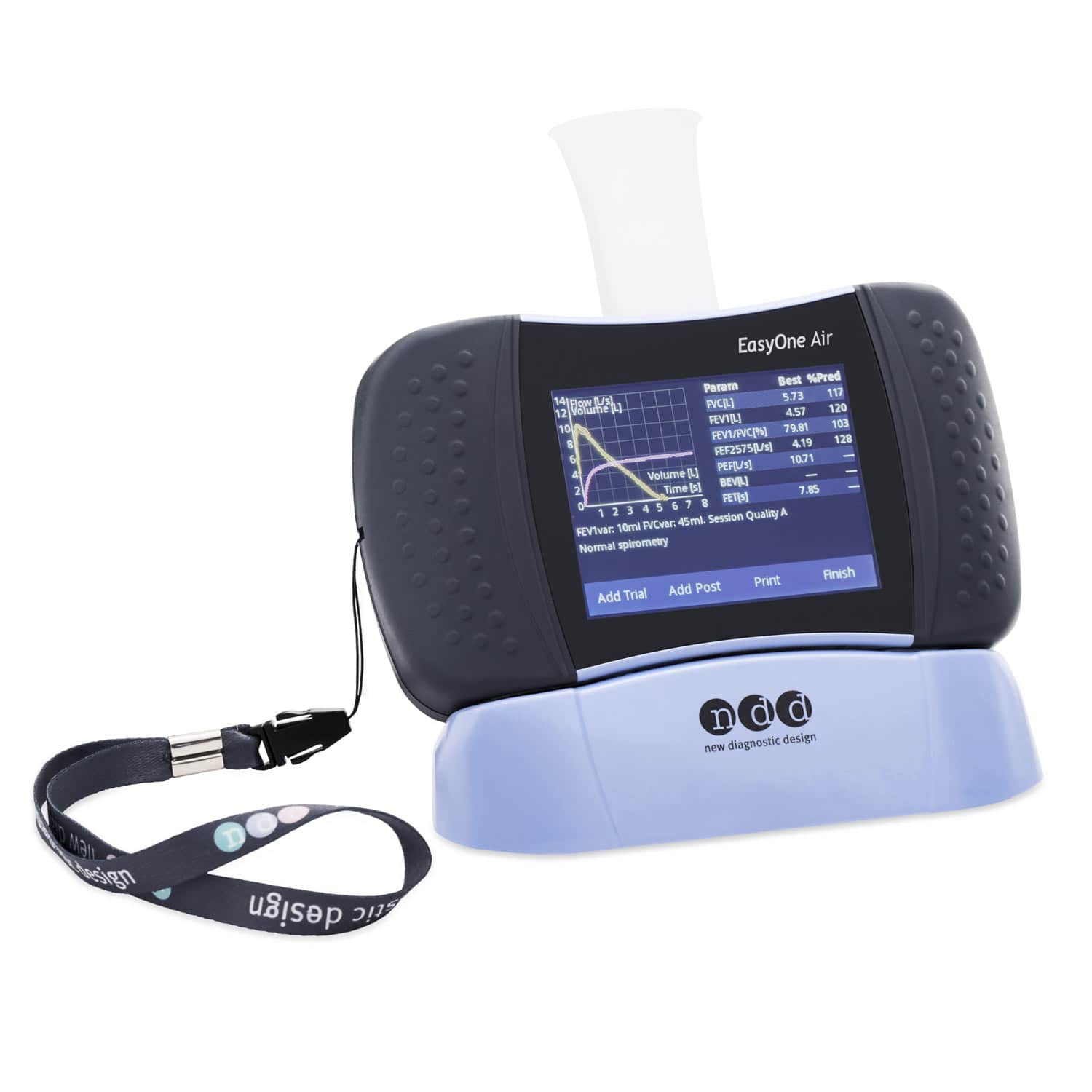

NDD EasyOne® Air Spirometer
NDD EasyOne® Air Spirometer
NDD
Regular price
£2,662.00 GBP
Regular price
Sale price
£2,662.00 GBP
Unit price
/
per
Couldn't load pickup availability
Product Description
The flexible and proven NDD EasyOne® Air Spirometer can beused alone or in conjunction with a PCas required. The measurements are neither influenced by the place of use nor by environmental factors and offer ahigh degree of accuracy. This results from theinnovative TrueFlow™ technology. It is based on unique ultrasonic technology that ensuresaccurate flow and volume measurementsthroughout the life of the units. It also enablescontact- and resistance-free measurement. When looking at the device, the first thing that catches the eye is thelarge colour touch screen. The test results are clearlydisplayed in real timeand are easy to read.
Details
- Choice between mobile or PC mode
- High measurement accuracy thanks to TrueFlow™ technology
- Display of results in real time
- High resolution colour touch screen
- Interfaces: HL7, XML, GDT or API
Overview
- NDD EasyOne® Air Spirometer
- Flexible and proven spirometer for various applications
- Can be used alone or in conjunction with a PC
- Measurements are not influenced by location or environmental factors
- High measurement accuracy thanks to TrueFlow™ technology
- Calibration-free and easy to clean device
- Intuitive and high-resolution colour touch screen
- Clear test results, easy to read
- Long battery life for up to 100 complete tests
- Choice between mobile or PC mode
- Entering the data and displaying the results in real time
- Easy connection to the PC via Bluetooth
- Connection to electronic patient management systems (EMR)
- Printing via direct USB connection or via EasyOne Connect
- Synchronization of data via USB or Bluetooth
- Interfaces: HL7, XML, GDT or API
- Can be combined with the NDD FlowTube breathing tubes
- Safe protection against infection and prevention of contamination of the device
- Breathing tubes can be connected to the NDD inline filters via adapters
- Low risk of cross-contamination
- Custom evaluation
- Customization of the measurement data display and parameter selection possible
- Selection between Z-value, %setpoint and LLN possible
- Automatic quality assessment and interpretation
- Quality levels on NLHEP and ATS/ERS 2005 and 2019
- Encrypted database available
- Class IIa medical device
- Perfect for pneumologists, general practitioners and hospitals
- Test quality and evaluation
- Comments function
- Child-friendly animations
- custom test reports & provocation protocols
- Extensive selection of reference values (%Pred, Z-Score and LLN)
- Import of external PFT results
- Print options: direct to printer or with EasyOne Connect software
- Data management: EasyOne Connect
- Export: HL7, XML, GDT, with software
- Data connections: USB, Bluetooth
- Memory: up to 10,000 tests
- Patient age: spirometry > 4 years
- Dimensions: 7 x 155 x 36 mm (H x W x D)
- Weight: approx. 356 g
- Device classification: type BF applied part
- Power supply: 5 VDC, standby 0.3 W
- Rechargeable battery: replaceable, 3.6 VDC
- Standards: ISO 13485, ISO 14971, IEC 62366, IEC 62304, ISO 26782, ISO 23747, IEC 60601-1, IEC 60601-1-2, ISO 10993-1
- Languages: German, Danish, English, French, Dutch, Italian, Polish, Portuguese, Russian, Swedish, Spanish
- Type: ultrasound runtime
- Flow range: ± 16 l/s
- Flow resolution: 4 ml/s
- Flow accuracy (except PEF): ± 2 % or 0.020 l/s
- PEF accuracy: ± 5 % or 0.200 l/s
- MVV accuracy: ± 5 % or 5 l/min
- Volume range: ± 12 l
- Volume resolution: 1 ml
- Volume accuracy: ± 2 % or 0.050 l
- Resistance: 0.3 cm H20/l/s at16 l/s
