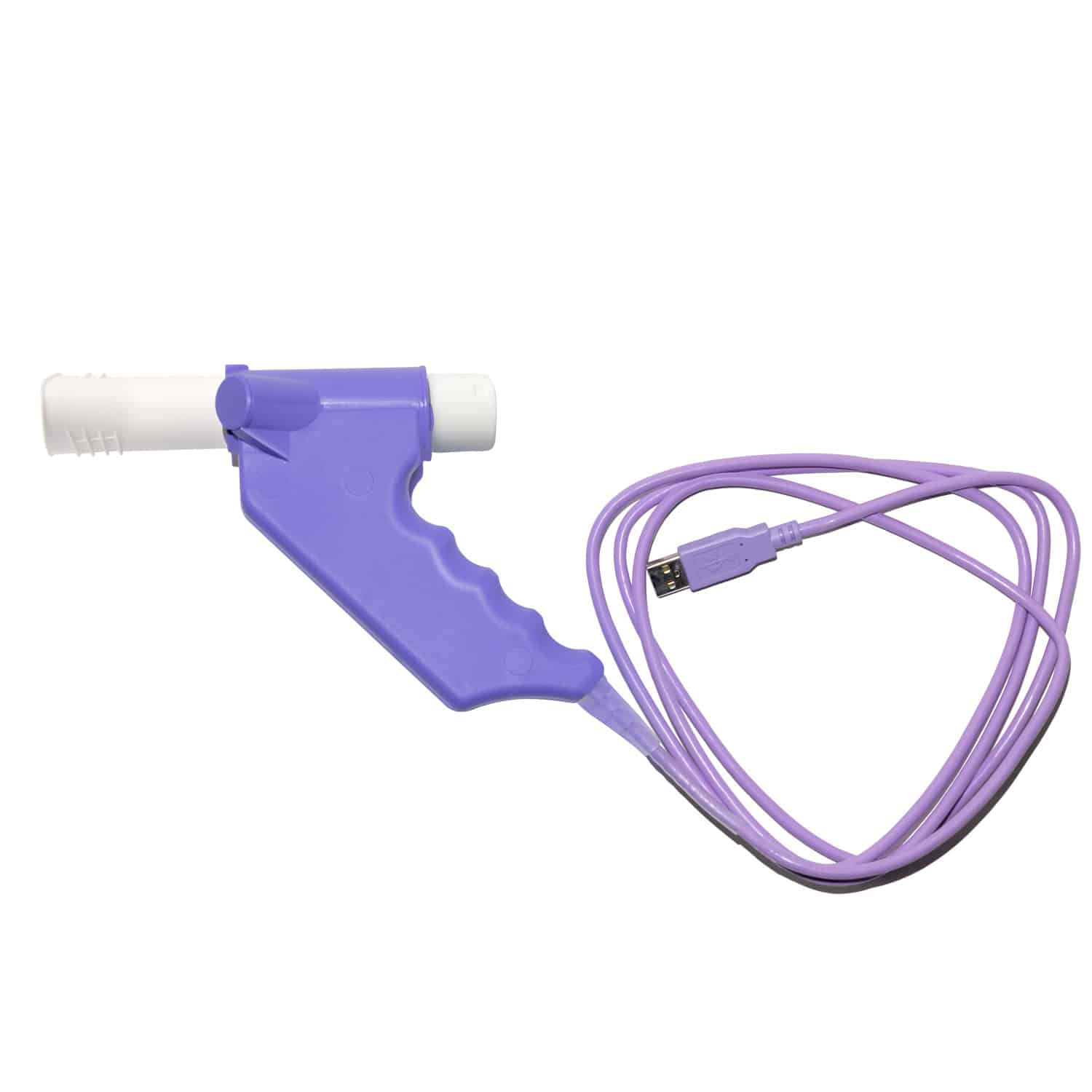

NDD Easy on-PC Spirometer
NDD Easy on-PC Spirometer
NDD
Regular price
£1,851.00 GBP
Regular price
Sale price
£1,851.00 GBP
Unit price
/
per
Couldn't load pickup availability
Product Description
The fully integrated NDD Easy on-PC Spirometer delivers reliable results and high accuracywithout requiring calibration, thanks to innovative TrueFlow™ technology. Workflow is accelerated thanks to instantquality assessment and interpretation. Interactive displays,engaging animations and real-time graphicsfacilitate the performance of the pulmonary function test for both children and adults.
Details
- Fully integrated and PC-controlled
- No calibration required
- Immediate quality feedback
- High shock and vibration resistance
- Compatible with EasyOne Connect software
Overview
- NDD Easy on-PC Spirometer
- Fully integrated, PC-controlled spirometer
- Reliable results with high accuracy thanks to TrueFlow™ technology
- No calibration required
- Easy implementation thanks to real-time diagrams and animations
- Immediate quality feedback
- EMR/EHR connection, supports HL7/XML data exchange
- Flexible choice of settings
- Perfect for stationary and mobile use
- High shock and vibration resistance
- Robust cable protection
- For use with the EasyOne Connect software platform
- High infection protection when using the NDD inline filters
- Conforms to the Medical Device Directive 93/42/EEC
- With CE-marking
- Ideal for general practitioners, pneumologists, emergency doctors and hospitals
- Test quality and evaluation
- Comments function
- Child-friendly animations
- Custom test reports & provocation protocols
- Extensive selection of reference values (%Pred, Z-Score and LLN)
- Import of external PFT results
- Print options: direct print control or via network
- Data management: EasyOne Connect (SQLite, MS SQL Server)
- Interface: HL7, XML, GDT
- Storage capacity: > 10,000 tests
- Patient age: spirometry > 4 years
- Device classification: Type BF applied part
- Standards: ISO 13485, ISO 14971, IEC 62366, IEC 62304, ISO 26782, ISO 23747, IEC 60601-1, IEC 60601-2, ISO 10993-1
- Languages: German, Chinese, Danish, English, Finnish, French, Italian, Japanese, Croatian, Dutch, Norwegian, Portuguese, Russian, Spanish, Swedish, Turkish, Vietnamese
- Hard disk capacity: installation/system 1 GB; data up to 4 GB
- RAM: 2 GB
- Operating systems: Windows 7, Windows 8 and 8.1 (32 and 64 bit), Windows 10 (32 and 64 bit)
- Type: ultrasound runtime
- Flow range: ± 16 l/s
- Flow resolution: 4 ml/s
- Flow accuracy: ± 2 % or 0.020 l/s
- Volume resolution: 1 ml
- Volume accuracy: ± 2 % or 0.050 l
- PEF accuracy: ± 5 % or 0.200 l/s
- MVV accuracy: ± 5 % or 5 l/min
- Resistance: ~ 0.3 cm H2O/l/s at 16 l/s
- Measuring frequency: 400 Hz
