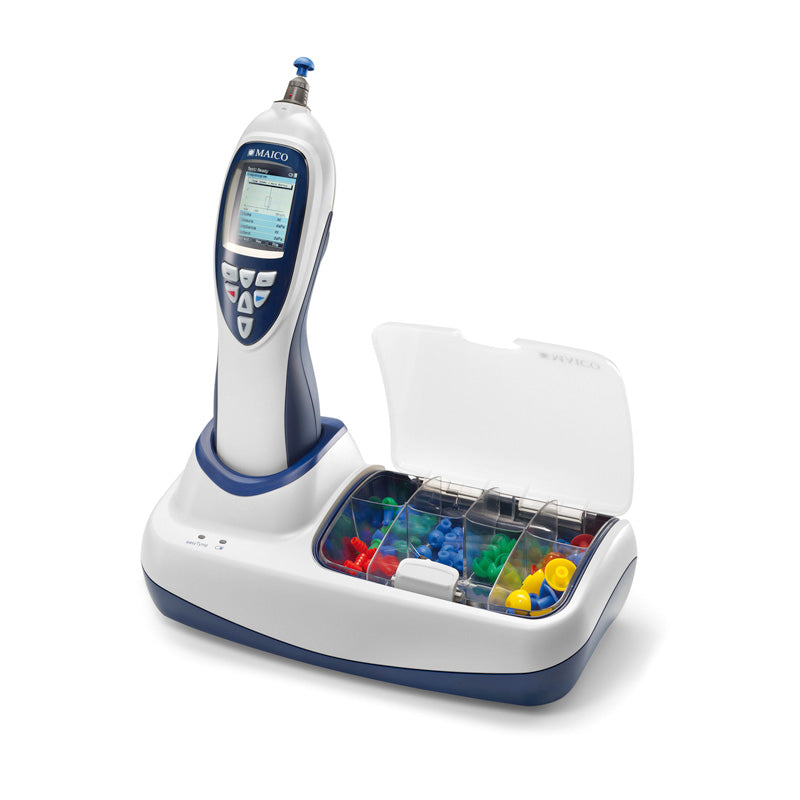

Maico EasyTymp Tympanometer with external printer

• Tympanometer for rapid middle ear diagnosis
• Stapedius reflex with 4 frequencies
• For measuring in adults and children
• Preset test protocols can be selected
• Measurement values can be transferred to the practice PC via USB
• Very easy to use thanks to the ergonomic shape of the device
• Fully automatic test performance
• High-resolution colour graphic display
• With tympanometry software to connect to the practice computer system
• With colour graphic LCD display
• Dimensions: 8 x 30 x 7 cm (W x D x H)
• Weight: 427g
• Disk space for approx. 1,000 measurements
• Optionally available with 4 inch thermal printer
• 2 year warranty

Technical Overview

• Measurement frequency, level: 226 Hz ± 1%, 69 dB SPL in 2 cm3
• Pressure range: + 200 to - 400 daPa
• Volume range: 0.1 to 8.0 ml
• Measurement accuracy: ± 5% or ± 10 daPa
• Test time: < 3 seconds
• Reflex measurement test frequencies: 500, 1,000, 2,000, 4,000 Hz ± 3%
• Measurement method: ipsilateral

 PC system requirements

• Processor: Intel Dual Core 1.8 GHz
• Memory: 1 GB RAM, 2 GB RAM with Windows 7
• Graphics: min. 1024 x 768 (1280 x 1024 or higher recommended)
• Operating system: Win XP Professional (SP3), Win 7, Win Professional or Ultimate version for 32 and 64 bit, Win 8, Professional or Enterprise version for 32 and 64 bit, .NET Framework 3.5, SP1

Delivery Contents

• Maico EasyTymp tympanometer

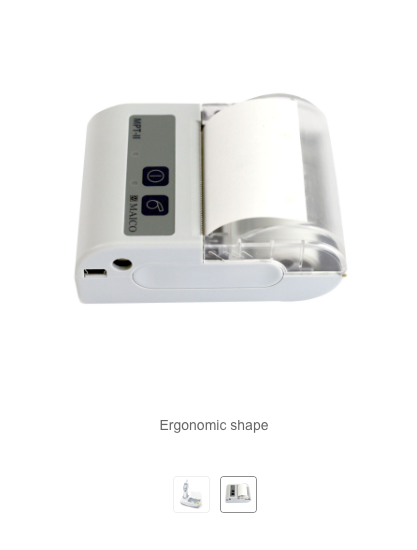

• MPT II thermal printer
• Separate earplug box
• USB cable
• Replacement probe tip
• Acoustic reflex measurement
• Power adapter
• 2 batteries
• Roll of thermal paper
• Carrying bag
• Tympanometry software
