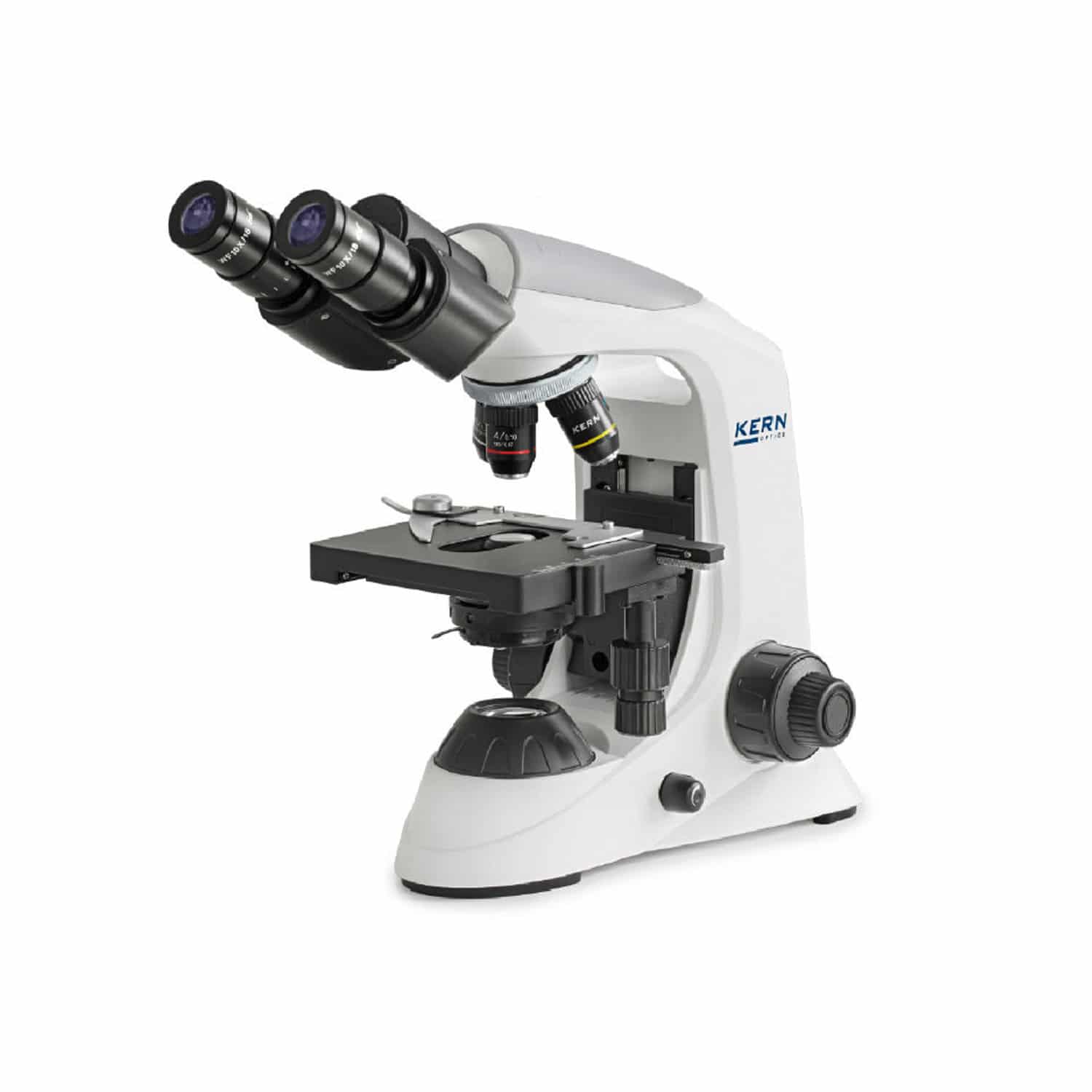

Kern Transmitted Light Microscope OBE
Kern Transmitted Light Microscope OBE
KERN
Regular price
£791.00 GBP
Regular price
Sale price
£791.00 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
This Kern transmitted light microscope OBE 132 boasts anergonomic and robustdesign, making it perfect forschools, training purposes, and laboratories. Thecontinuously dimmable 3 W LEDensures excellent illumination of the specimen. Another highlight is thestandard integrated butterfly tube, which allows the ideal viewing angle to be set.
Details
- Binocular all-round transmitted light microscope
- Brilliant illumination thanks to dimmable 3 W LED
- Integrated butterfly tube as standard
- With coarse and fine drive on both sides
- Including 4 eyepieces and other accessories
Overview
- Kern transmitted light microscope OBE
- Binocular, dynamic all-round transmitted light microscope
- Robust and ergonomic design
- Brilliant illumination thanks to continuously dimmable 3 W LED
- Integrated butterfly tube as standard for the ideal viewing angle
- Height-adjustable and focusable 1.25 Abbe condenser with aperture diaphragm
- Ensures optimum light concentration
- Cross table height adjustable as required with coarse and fine drive on both sides
- Shifting the preparation with the help of the coaxial drive
- Practical storage compartment at the back
- Power supply also possible with power bank thanks to USB connection
- Including 4 eyepieces, protective cap, eyecups and instructions for use
- For use in schools, training and laboratories
- Finite optics (DIN)
- 4-fold revolving nosepiece
- Butterfly 30°
- Dioptric compensation (one-sided)
- Interpupillary distance: 48-75 mm
- Eyepiece: HWF 10 x Ø 18.0 m
- Lenses: Achromatic 4x / 10x / 40x / 100x
- Overall dimensions: 360 x 150 x 320 mm (W x D x H)
- Net weight: approx. 4.6 kg
- Input current: AC 100-240 V, 50-60 Hz, 0.3 A
- Output current: DC 5V, 1.0 A
