Kern OCM 161 Inverted Microscope
Kern OCM 161 Inverted Microscope
KERN
Regular price
£4,159.90 GBP
Regular price
Sale price
£4,159.90 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description

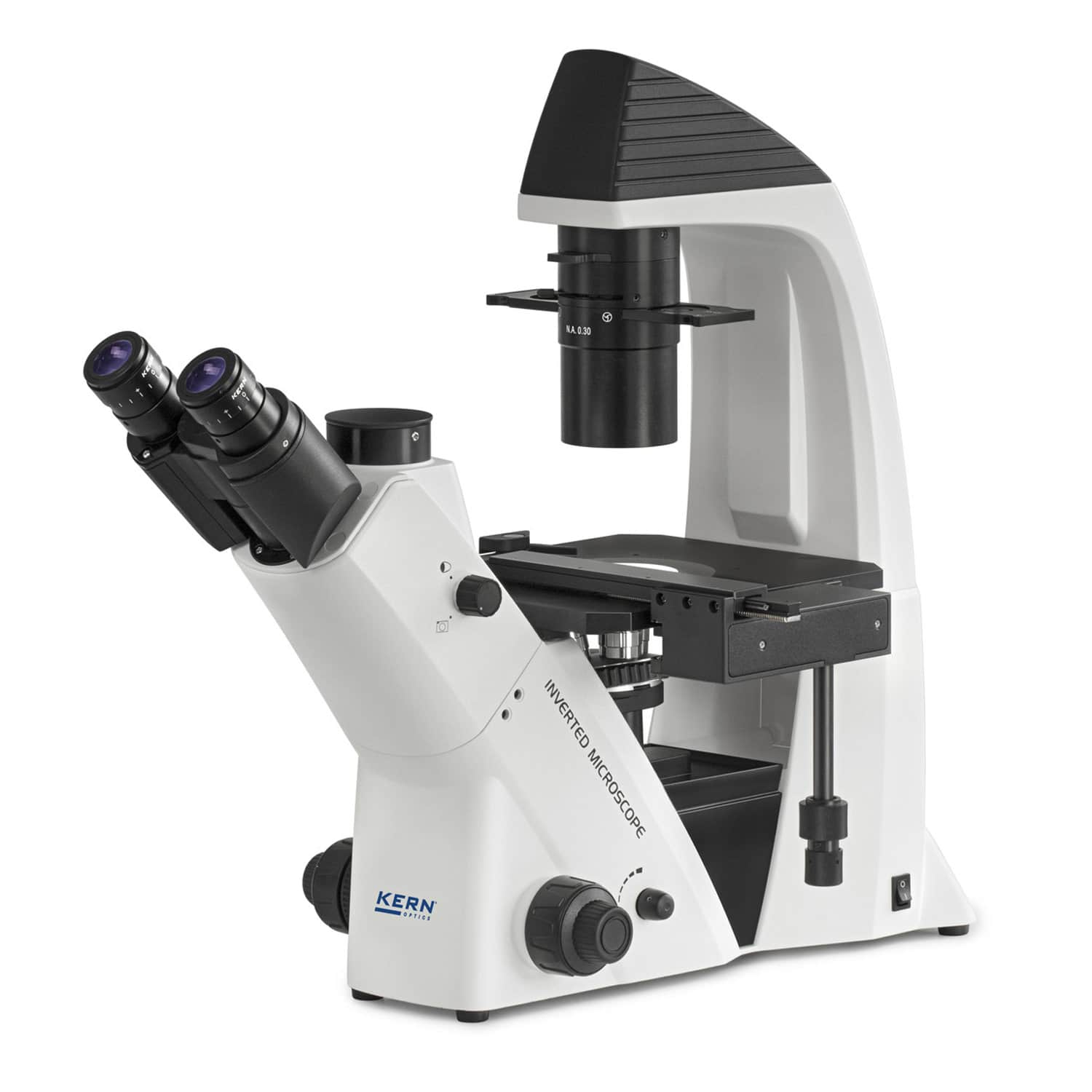

The design of the Kern OCM 161 inverted microscope allows a large working distance and is thereforeideal for analysing cell cultures. Ahigh degree of stabilityand the ergonomic design make working with the microscope easy. The30W halogen illuminationis infinitely variable and ensures optimal illumination of the specimen under examination. The5x lens revolving unitis equipped with 4 Infinityplanachromatic objectives, including aphase contrast objective(PH20x).
Details
- High stability
- 5-fold lens revolving unit
- Planachromatic objectives: 10x, 20x, PH20x, 40x
- Eyepieces: HWF 10x / ∅ 22 mm
- 30 W halogen illumination, continuously dimmable
Overview
- Kern Inverted Microscope with Infinity Optics
- Model: OCM 161
- Ergonomic design & high stability
- Allows a large working distance
- Ideal for examining cell cultures (in flasks, dishes and microtitre plates)
- Siedentopf 45° inclined
- 5-fold lens revolving unit
- Infinity planachromatic objectives: 10x, 20x, PH20x, 40x
- Incl. phase contrast slider (10x and 20x/40x)
- Colour filters: blue & green
- Interpupillary distance : 48-76 mm
- Diopter compensation on both sides
- Beam path distribution 100:0
- Eyepieces: HWF 10x / ∅ 22 mm
- Continuously dimmable 30W halogen illumination
- Specimen stage including specimen holder (∅ 110 mm) and specimen holder for 54 mm culture dishes
- With coarse and fine drive on both sides
- Abbe N.A. -0.3 condenser with aperture diaphragm
- Dimensions (WxDxH): 30.4 x 59.9 x 53 cm
- Weight: approx. 13.5 kg
- Delivery includes dust cover, eyecups and multilingual operating instructions
