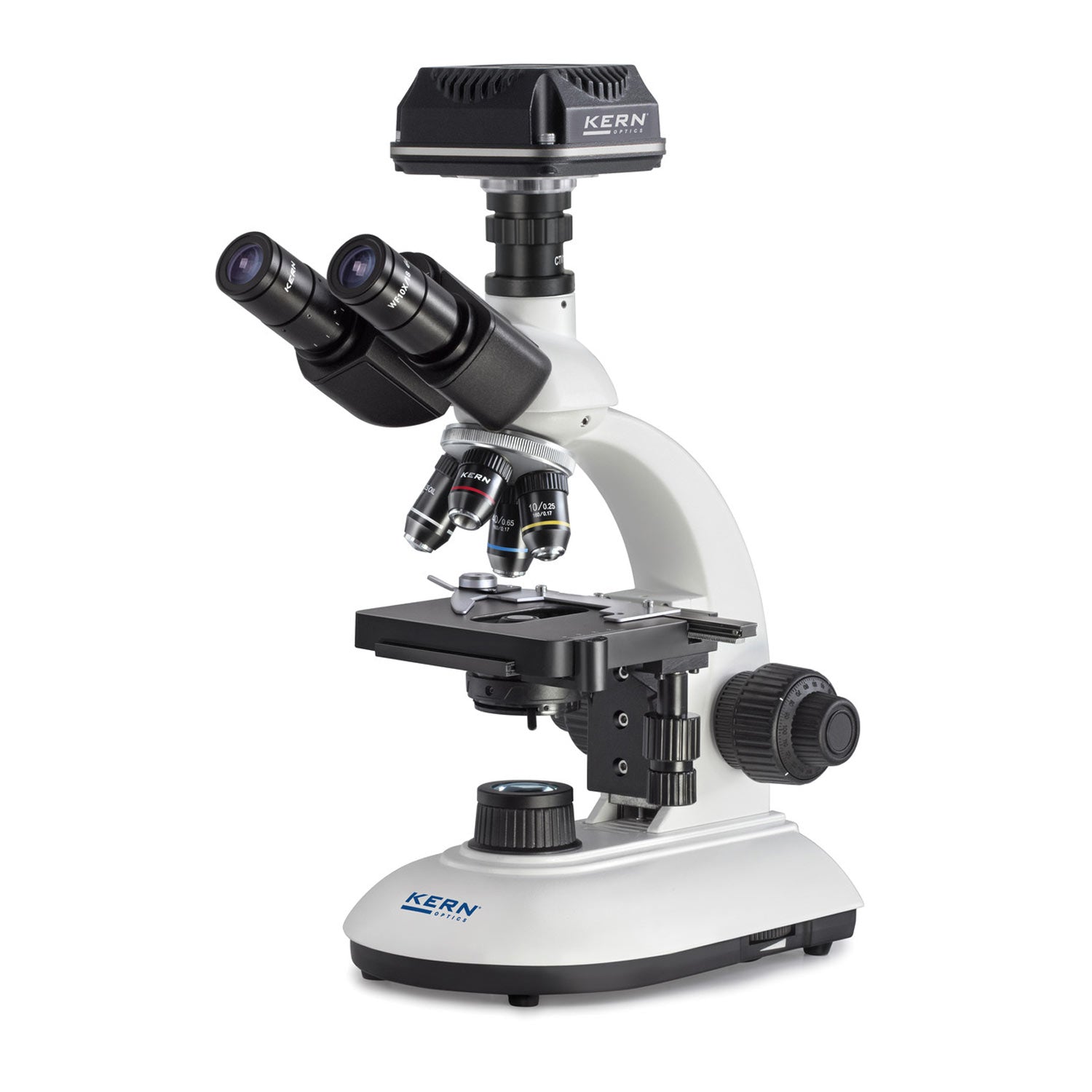

Kern OBE 114 Digital Microscope with camera
Kern OBE 114 Digital Microscope with camera
KERN
Regular price
£1,727.00 GBP
Regular price
Sale price
£1,727.00 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
The OBE 114 digital microscope from Kern has a trinocular tube and is available with either a microscope camera or a tablet camera. The camera can be usedto digitally document images or image sequencesof an object under observation orto display the examined sample directly on the screen, making the microscope particularly suitable for demonstration purposes in the laboratory or for training pupils and students.
Details
- Optionally with microscope camera or tablet camera
- 4 achromatic objectives: 4x, 10x, 40x, 100x
- Siedentopf 30° inclined, 360° rotatable
- Eyepieces with HWF 10x / ∅ 18mm
- 3W LED light source
Overview
- Kern Digital Transmitted Light Microscope
- Model: OBE 114
- C-mount adapter included
- Optionally with 5.1 mpx camera or with 5 mpx tablet camera
- 4x revolving lens
- Objectives, achromatic: 4x / 10x / 40x / 100x (oil)
- Siedentopf 30° inclined, 360° rotatable
- Diopter compensation one-sided
- 2 Eyepieces: HWF 10x / ∅ 18 mm
- Continuously dimmable 3 W LED illumination
- Enables fast and exact positioning of the samples
- Fully equipped mechanical stage
- With coarse and fine focusing knob on both sides
- With clamp for mounting the slide
- 1.25 ABBE condenser with aperture diaphragm, height adjustable
- Dimensions (WxDxH): approx. 32 x 18 x 36.5 cm (without camera attachment)
- Net weight approx. 5.5 kg
- Supported operating systems of the microscope camera: Windows XP, Vista, 7, 8 and 10
- Delivery contents: camera (microscope camera or tablet camera), C-mount adapter, dust cover, eyecups and multilingual operating instructions
