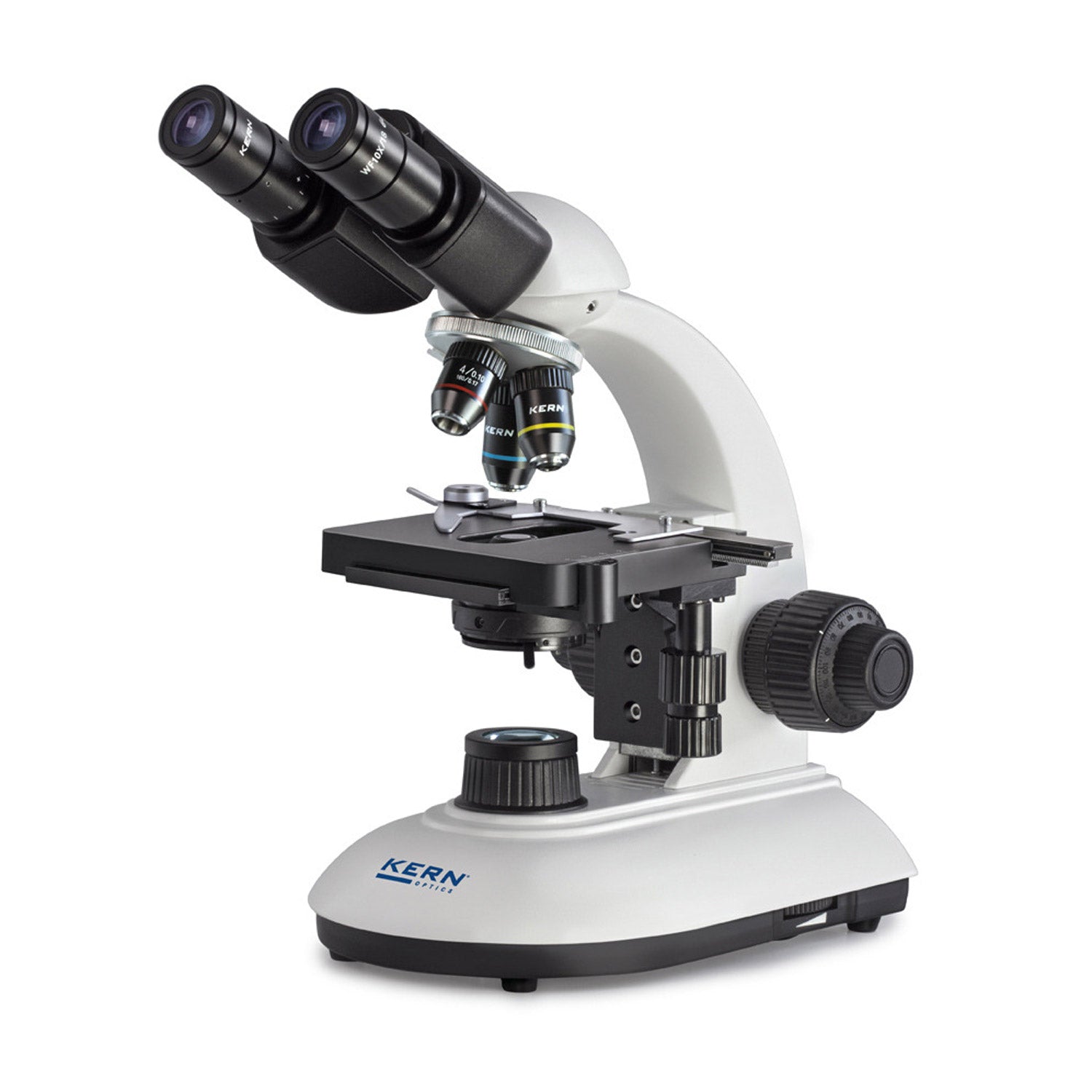

Kern OBE 102 Microscope
Kern OBE 102 Microscope
KERN
Regular price
£726.00 GBP
Regular price
Sale price
£726.00 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
The Kern OBE 102 is a fully equipped binocular microscope with4x revolving lensandthree achromatic objectives. The long-lasting and continuously dimmable 3W LED illumination enables optimal illumination of samples. In addition, the mechanical stage with coaxial coarse and fine focusing knob on both sides makes microscopy very comfortable and allows fast and exact positioning of the specimen.
Details
- 3W LED illumination, continuously dimmable
- Achromatic objectives: 4x / 10x / 40x
- Eyepieces: HWF 10x / ∅ 18mm
- With coarse and fine focusing knob on both sides
- Height-adjustable 1.25 ABBE condenser
Overview
- Kern Binocular Microscope
- Model: OBE 102
- 4-fold lens, revolving unit
- Siedentopf 30° inclined, 360° rotatable
- Diopter compensation one-sided
- Objectives, achromatic: 4x / 10x / 40x
- Eyepieces: HWF 10x / ∅ 18 mm
- Interpupillary distance: 50 - 75 mm
- Continuously dimmable 3 W LED illumination
- Ergonomic design for fatigue-free work
- Enables fast and accurate positioning of specimens
- Fully equipped mechanical stage with coarse and fine drive on both sides
- With spring clamp for clamping slides
- Height-adjustable 1.25 ABBE condenser with aperture diaphragm
- Dimensions (WxDxH): 32 x 18 x 36.5 cm
- Weight: 5.5 kg
- Accessories for dark field diagnosis and polarization are available separately
- Delivery includes dust cover, eyecups and multilingual operating instructions
