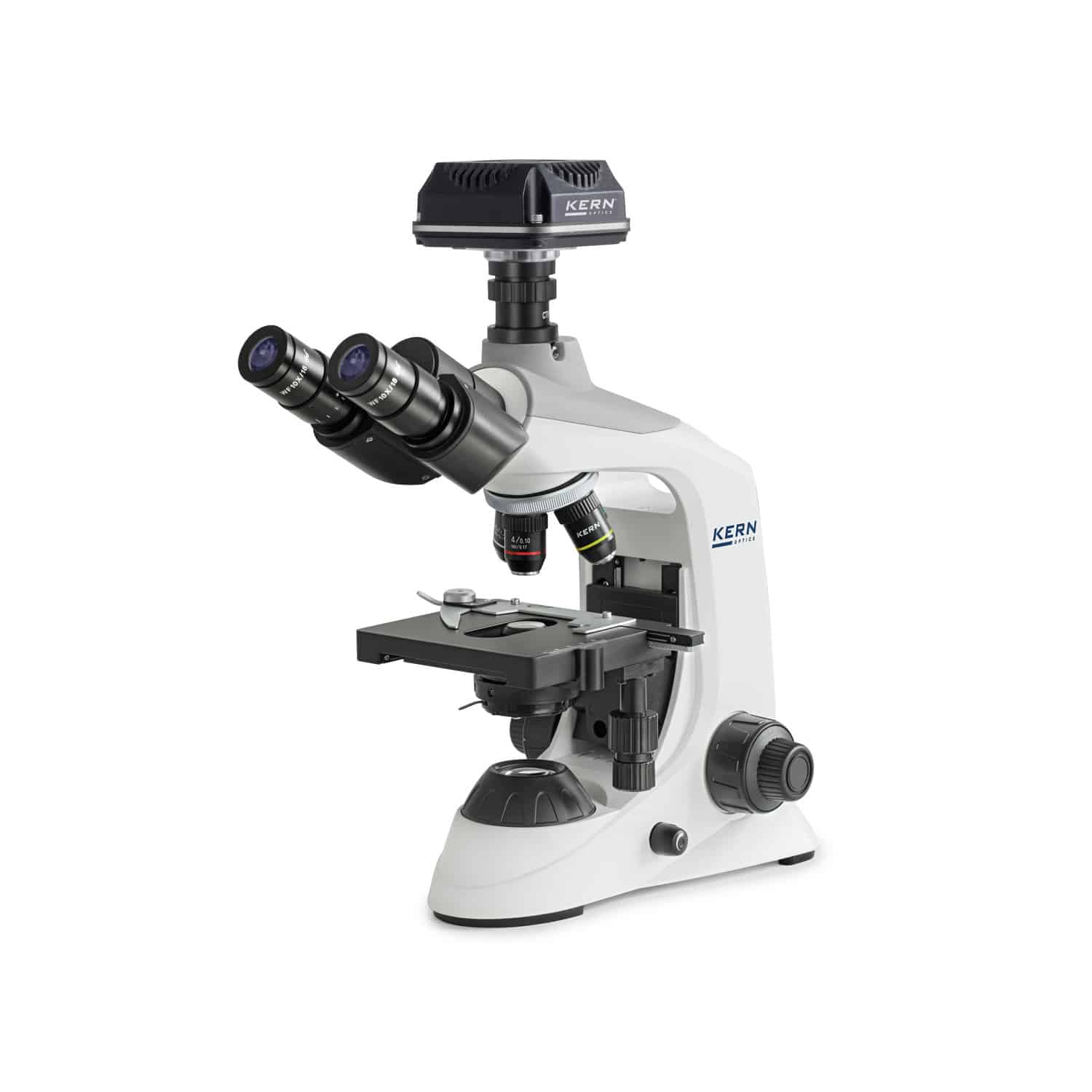

Kern Digital Microscope OBE Set 124C825 with C-Mount Camera
Kern Digital Microscope OBE Set 124C825 with C-Mount Camera
KERN
Regular price
£1,245.00 GBP
Regular price
Sale price
£1,245.00 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
The Kern Digital Microscope OBE Set is a fully equipped, trinocular all-round transmitted light microscope with achromatic objectives and a 4x objective nosepiece. The robust and ergonomic design of the OBE series offers easy, convenient and direct examination of specimens and is ideal for students and for demonstration purposes in the laboratory.
Details
- Trinocular all-round transmitted light microscope
- Direct image transmission to PC
- Continuously dimmable 3W LED illumination
- Height-adjustable 1.25 ABBE condenser with aperture diaphragm
- Optionally with C-mount or tablet camera
Overview
- Kern Digital Microscope OBE Set
- Digital, fully equipped all-round transmitted light microscope
- Trinocular
- Ideal for schools, training & laboratories
- Direct image transfer to a PC
- 4x revolving nosepiece
- Integrated butterfly tube
- Continuously dimmable 3W LED illumination
- Height-adjustable 1.25 ABBE condenser with aperture diaphragm for optimal light concentration
- Cross-stage with coaxial coarse and fine drive on both sides
- Ergonomic design
- High-quality finite optics (DIN)
- Siedentopf 30° inclined, 360° rotatable
- Optionally with adapted tablet or C-mount camera
- 1 digital microscope
- Optical system: Finite
- Lens quality: Achromatic
- Eyepiece: HWF 10x / 18.0 mm
- Fine drive minimum: 0.002 mm
- Camera sensor size: 1/2.5 ''
- Sensor: CMOS
- Voltage: 100 - 240 V
- Dimensions with C-mount camera: 360 x 150 x 390 mm (W x D x H)
- Dimensions with tablet: 360 x 235 x 540 mm (W x D x H)
