Product Description

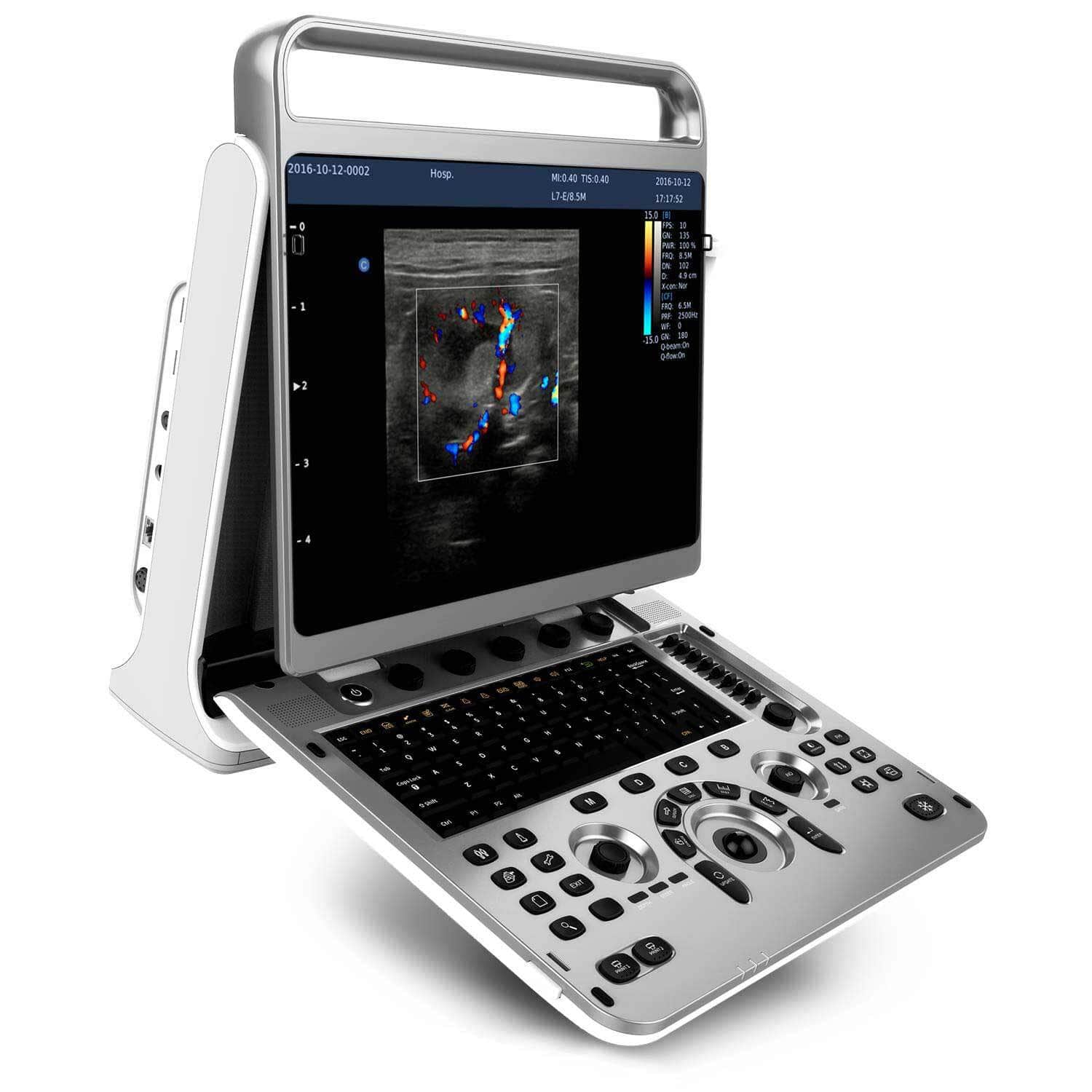

The Chison EBit 30 is aportable multifunctional ultrasound scanner with a high-resolution 15" LCD colour display. It has avariety of imaging modesand can be upgraded withadditional software extensionsto add more options.

Details

  • Multifunctional ultrasound scanner
  • High-resolution 15-inch LCD colour display & rechargeable battery
  • Works with FHI technology, Q-image and Q-beam
  • Includes C3-E convex probe and L7-E linear probe
  • Weight: 7.5 kg

Overview

  • Chison EBit 30
  • Portable and lightweight ultrasound scanner
  • Digital Colour Doppler Ultrasound System
  • Perfect for examining smaller organs such as the thyroid, testicles and chest
  • Also suitable for examining the brain, heart, vessels and the musculoskeletal system
  • High-resolution 15-inch LCD colour display
  • Up to 30° screen rotation function
  • Measures distance, area, circumference, volume, fetal weight and heartbeat
  • Measures percentage of stenosis, blood flow velocities, velocity ratios, blood flow volumes and pressure gradients
  • Automatically measures maximum and minimum velocity values
  • Measures time interval, pulsatilty index and resistance index
  • With FHI technology, Q-image and Q-beam
  • High image resolution by doubling the volume of the received signals
  • Faster frame rate due to advanced chipset
  • Features zoom function and depth adjustment
  • Possible image freezing and storage function
  • With comment function in the image area on the screen, user-defined commentary terms can be set
  • Adjustable total gain and contrast
  • Display of patient ID, time, date, gestation age and estimated delivery date
  • Individually adjustable frequency track, 8 segment TGC, dynamic range control and perisistence
  • Includes removable, rechargeable battery with a running time of approx. 2h
  • System is compatible with Mitsubishi P93W, Sony UP-711MD, Sony UP-X898MD & Mitsubishi CP31W video printers
  • Features a backlit alphanumeric keypad
  • Multilingual user interface display, user interface switching, shear plate, and biopsy guided functions
  • Weight: 7.8 kg
  • Dimensions: approx. 358 mm x 125 mm x 399 mm (L|W|H)
  • Optional Dicom 3.0, Super Needle and 2D sheer available separately
  • Delivery contents: EBit 30 with battery + C3-E convex probe and L7-E linear probe
  • Gynaecology
  • Urology
  • Paediatrics
  • Radiology
  • Internal medicine
  • B-, B/M-, M-, 2B-, 4B-, CFM-, CPA(PD)-, DPD-, PW-, B/BC-, Triplex-, Quadplex- and Trapezoid Mode
  • Option: Elastography Mode, Super Needle, Curved Panoramic Imaging, Color M Mode, TDI, Free Steering M Mode, CW Mode, 2D Mode
  • 1 LAN connection
  • 1 S-VIDEO connection
  • 1 VIDEO OUT connection
  • 4 USB ports
  • 2 probe connections
  • 1 Foot Switch connection
  • 1 power-in connection
  • 1 DVI connection
  • 1 VGA connection
  • 1 remote connection
  • 1 ECG connection
