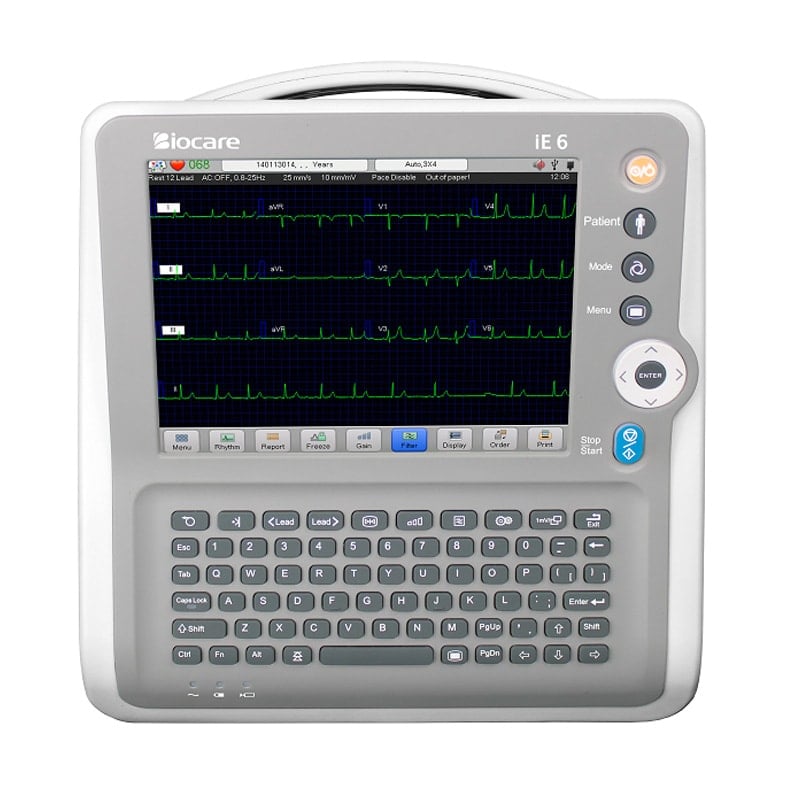

Biocare IE-6, 6-Lead ECG Machine
Biocare IE-6, 6-Lead ECG Machine
Biocare
Regular price
£1,438.00 GBP
Regular price
Sale price
£1,438.00 GBP
Unit price
/
per
Product Description
Details
- With evaluation and interpretation
- 8" Touchscreen
- With thermoprinter
- Lithium battery
- Alphanumeric keyboard and shortcut keys
Overview
- 6-lead ECG machine
- Model: Biocare IE-6
- High-resolution 8" TFT-LCD touchscreen display
- Simultaneous presentation of up to 12 leads
- With pacemaker recognition
- Defibrillation protected
- Various modes: auto, manual, rhythm
- AC-, deep pass- and baseline shift filters
- Includes evaluation and interpretation
- Particularly easy to operate
- With practical shortcut keys
- Alphanumeric keyboard allows for quick input of patient data
- Settable standby mode
- Large, integrated storage for up to 3,000 ECGs
- With integrated thermoprinterfor printing on 112 mm wide paper
- Various connection options (SD Card, USB)
- 15° angled display - for particularly easy readability
- With integrated lithium battery (2.5 hours of continuous operation with full charge)
- Parameters measured: heart rate, PR interval, QRS time limit, QT/QTc interval, P/QRS/T axis, RV5/SV1 amplitude
- With multilingual software (German, French, English, Spanish, Polish, Italian)
- Warning alarm for detached electrodes or low battery life
- Automatic printout upon arrhythmia recognition
- Memory and data transfer in the following formats: JPG, BMP, PDF, XML, DICOM
- Frequency response: 0.05~ 250Hz
- Minnesota code appears as a reference on the printout
- Dimensions: 25.7 x 29.1 x 10.6 cm (L x W x H)
- Weight: approx. 2.3 kg
- Biocare IE-6, 6-lead ECG machine
- Patient cables
- Clamp, vacuum and adhesive electrodes
- Grounding cable
- Power cable
- Power supply
- ECG paper
- User manual
