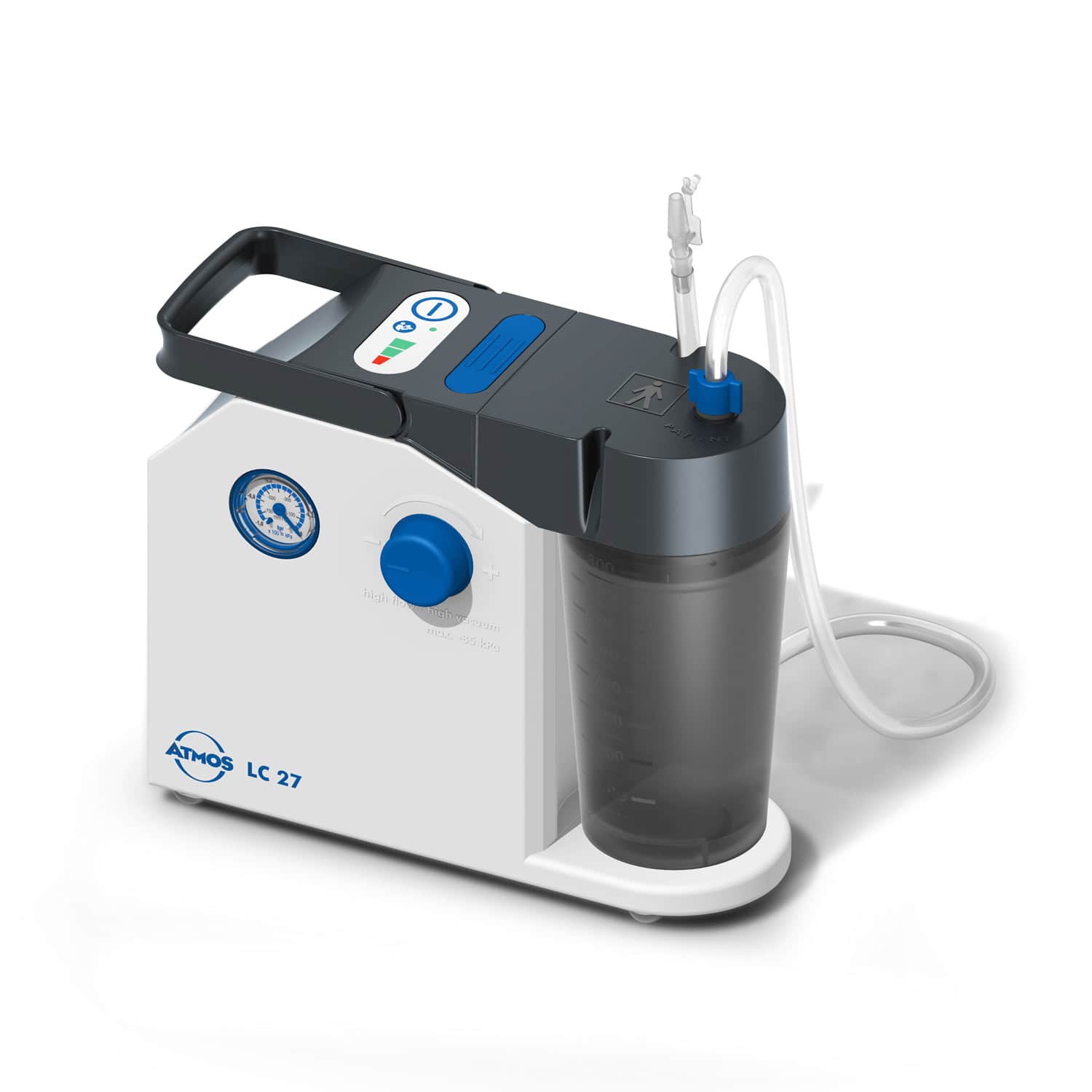

ATMOS LC 27 Suction Device

The ATMOS LC 27 is used for suctioning blood, secretions and food components from the oral cavity, pharynx and bronchial system. It is used, for example, for suctioning during tracheotomy, laryngectomy or swallowing disorders.

The vacuum capacity is infinitely adjustable via a regulator and read off directly from the clear pressure gauge. The single-patient secretion canister is directly connected to the suction unit by means of the Direct Docking System (DDS) and an intermediate bacterial filter cartridge protects the unit from contamination by dirt and liquids. With the help of a release button, the secretion canister can be easily removed for cleaning by hand or in the dishwasher.

As the secretion aspirator has been specially developed for use in the home environment, it is particularly easy and intuitive to use. The controls required for operation are coloured blue and designed so that no mistakes can be made during use.

The ATMOS extraction unit is available with or without a rechargeable battery as well as in the "Universal" version, which is also available with or without an integrated rechargeable battery.

Product Details

• Portable medical suction device
• For suctioning the upper and lower airways
• Ideal for use in the homecare sector as well as old people's and nursing homes
• For use by trained personnel or trained users
• For short-term use, up to max. 30 minutes
• Includes single-patient secretion canister (800 ml)
• Blue coloured operating controls
• Connection via Direct Docking System (DDS)
• Secretion canister can be cleaned in the dishwasher
• Includes DDS bacterial filter cartridge with hydrophobic bacterial filter
• Infinitely adjustable vacuum capacity
• Suction capacity: 27 l/min ± 3 l/min
• Max. Vacuum: -80 kPa ± 5 kPa
• Noise level: less than 65 dB (A) @ 1m
• Dimensions (W x H x D): 28.6 cm x 24.3 cm x 11.8 cm
• Weight (without battery): 1.8 kg
• Weight (with battery): 3.5 kg
• Protection class II according to EN 60601-1
• Protection class: IP 21
• Optionally with integrated rechargeable battery (lead-acid battery)

Models with a rechargeable battery have a battery life of approx. 60 minutes and the charging time is 3 hours for 50% charge and 12 hours for maximum charge. In addition, for emergency operation (when the battery is completely empty), operation via the mains adapter is possible.

Delivery Contents

For the ATMOS LC 27:

• Basic unit
• Single-patient secretion canister
• DDS bacterial filter cartridge
• Suction hose with DDS adapter and fingertip
• Mains power unit
• Instructions for use

For the ATMOS LC 27 Battery:

• Basic unit
• Single-patient secretion canister
• DDS bacterial filter cartridge
• Suction hose with DDS adapter and fingertip
• Mains power unit
• Instructions for use

For the ATMOS LC 27 Universal:

• Basic unit
• Single-patient secretion canister
• DDS bacterial filter cartridge
• DDS adapter
• Silicone suction hose, Ø 6 mm, L = 1.30 m
• Mains power unit
• Instructions for use

For the ATMOS LC 27 Universal Battery:

• Basic unit, with built-in battery
• Single-patient secretion canister
• DDS bacterial filter cartridge
• DDS adapter
• Silicone suction hose, Ø 6 mm, L = 1.30 m
• Mains power unit
• Instructions for use
