AngE™ Basic ABI OPO (arterial)
AngE™ Basic ABI OPO (arterial)
SOT Medical Systems
Regular price
£5,455.00 GBP
Regular price
Sale price
£5,455.00 GBP
Unit price
/
per
Couldn't load pickup availability
Product Description

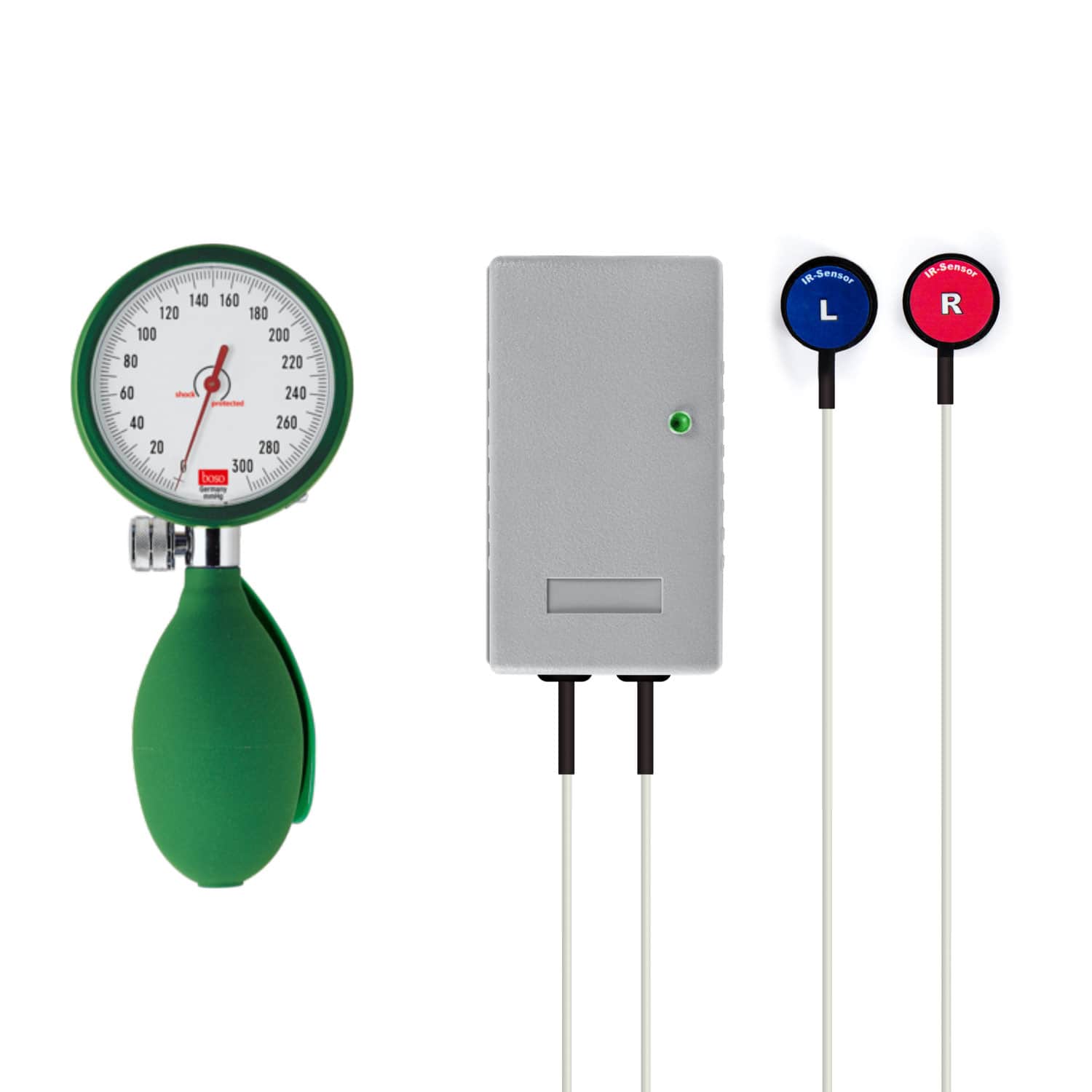

The AngE™ Basic ABI from SOT Medical Systems is a compact and versatile2-channel optical sensorpaired with manual pressure cuffs.It measures ABI, TBI, toe pressure, PWV, pulse rise time, skin temperature andsimultaneous left and right PPG pressures in under 2 minutes.
Details
- Simultaneous ABI with PPG in less than 2 minutes
- Captures ABI, TBI, toe pressure and PWV
- Mobile, USB-powered device
- Can be upgraded for venous examinations
- Incl. patient management & reporting software
Overview
- AngE™ Basic ABI from SOT Medical Systems
- 2-channel optical sensor combined with manual pressure cuffs
- For fast and accurate ABI and TBI measurement
- For measuring simultaneous ABI with PPG in less than 2 minutes
- Captures ABI, TBI, toe pressure, PWV, pulse rise time and skin temperature
- Measures microcirculation in toes & fingers (OPO)
- Thoracic outlet syndrome testing (TOS)
- Enables effective evaluation of arterial circulatory disorders
- Built-in comparison tool for conducting stress tests
- Flexible and USB-powered system
- Upgradeable for venous tests if required
- Also configurable for performing Palmar Arch/Allen tests
- Easy report creation in PDF format
- Includes manometer, upper arm, ankle, and toe cuffs
- Highly sensitive sensors & precise algorithms for vitually unfiltered display of pulse curses
- Cuffs measure all vessels and collaterals simultaneously
- Direct left and right comparison to detect side differences in timing and amplitude
- User-friendly software for for direct comparisons pre- and post-intervention
- Patient management and reporting software compatible with macOS and Windows
- GDT, DICOM & HL7 interfaces allow for easy integration
- Class IIa medical device
- LEDs indicate the current operating status
- Developed, produced & tested to the highest quality standards in Austria
- Available as a single or combined device for arterial and venous examinations
- Intended for use by trained professionals only
- Device dimensions: approx. 5.1 x 2.5 x 9.5 cm
- Sensor dimensions: approx. ø 1.8 x 1.1 cm
- Weight: approx. 120 g
- Operating system from Windows 10 or from macOS 10.15
- Intel Core i3 (or equivalent)
- 2 GB RAM
- 100 MB free hard disk space for installation
- Approximately 5 GB / year1hard disk space for the database
- Screen resolution of 1920 x 1080 (Full-HD) recommended
- Free USB 2.0 interface
- Network connection 100 Mbit (for use of software interfaces)
- AngE™ Phlebo 2-Channel PPG with temperature probes
- Manometer with dual-hose connection
- 2 sensor clips
- 1 pair of upper arm cuffs
- 1 pair of ankle cuffs
- 1 pair of toe cuffs
- 500 adhesive rings
- AngE™ software
- Carry bag
