SKU: 136298

VitaScan PD without Mobile Chassis

VitaScan PD without Mobile Chassis

VITACON

Regular price £8,639.39 GBP
Regular price Sale price £8,639.39 GBP
Sale Sold out

Product Description

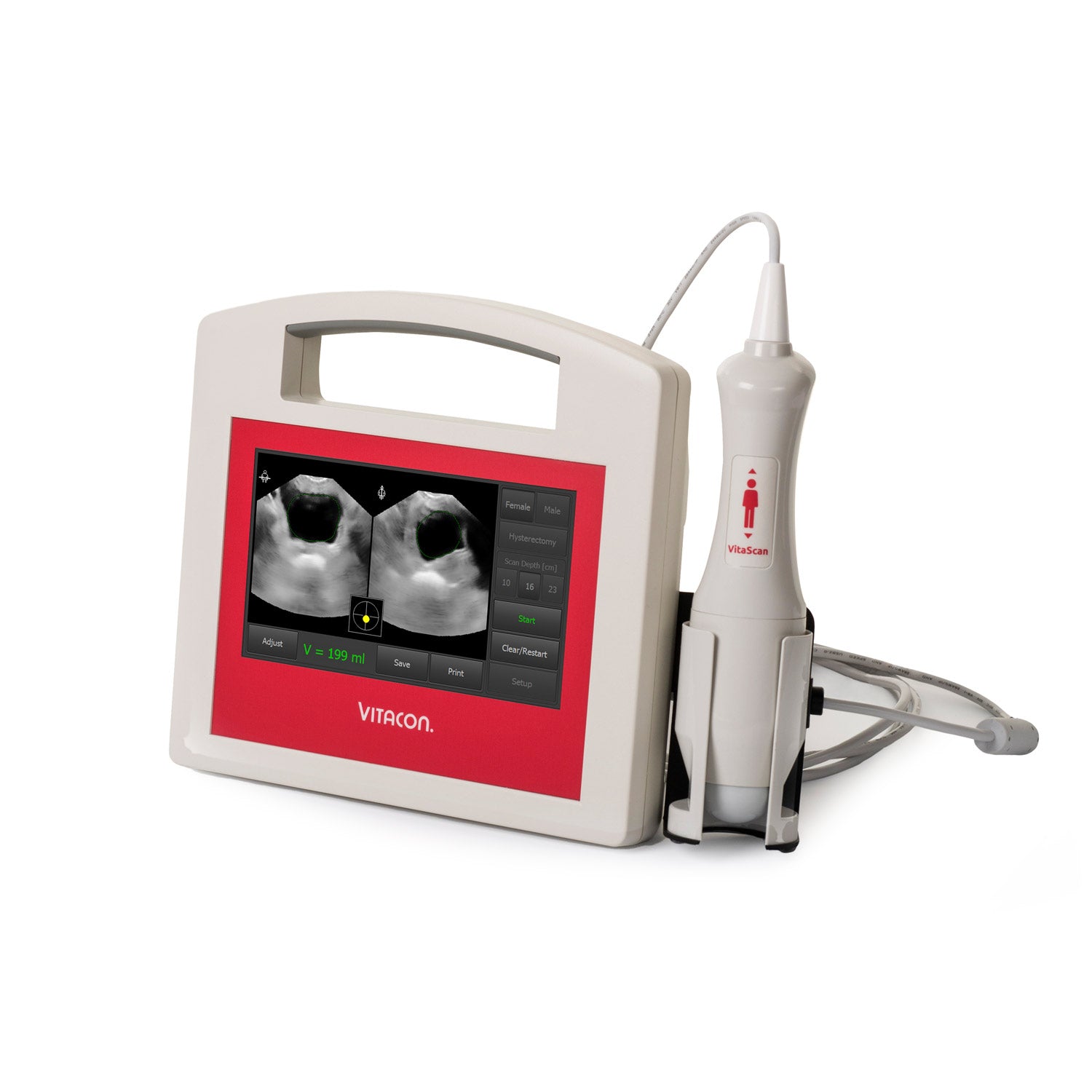

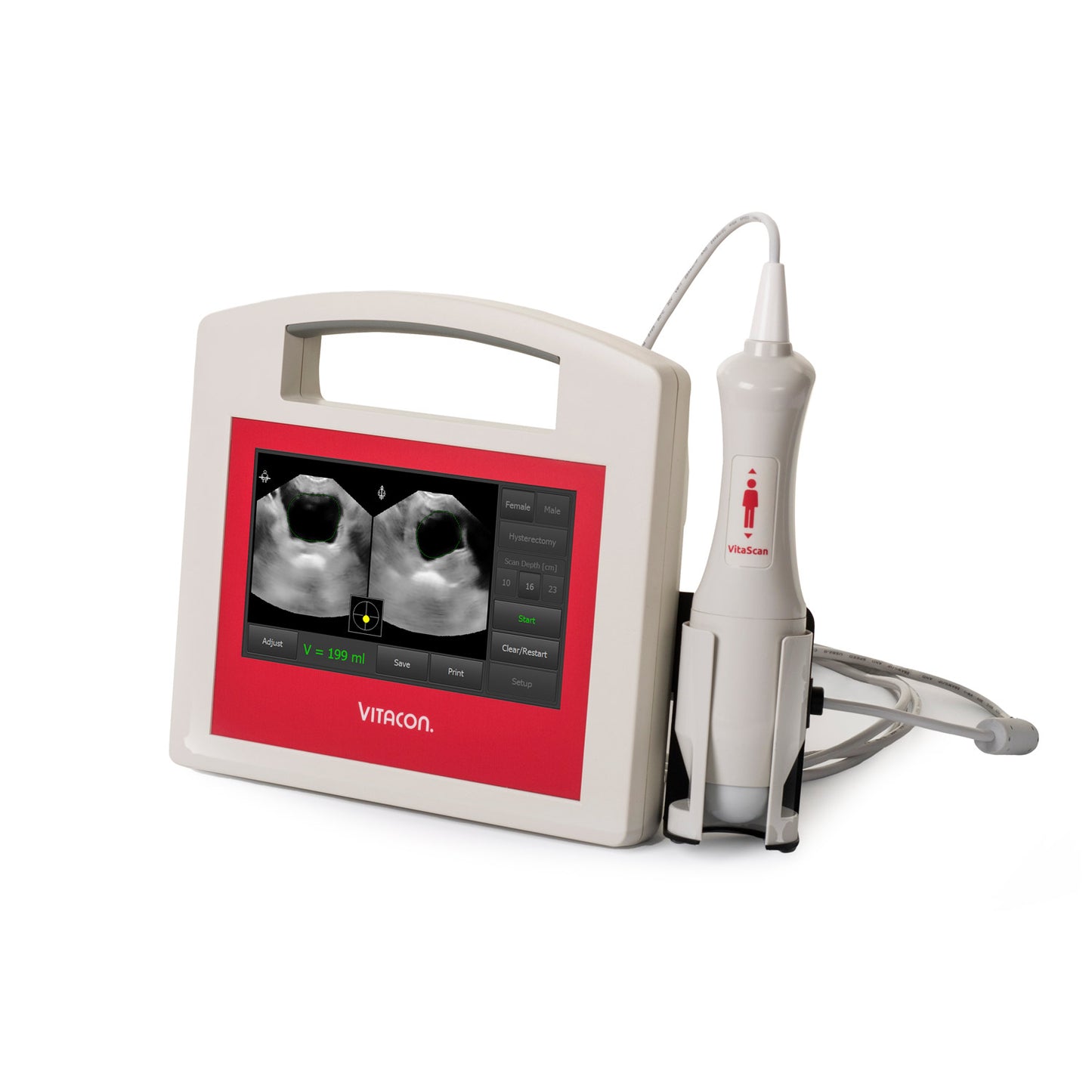

TheVitaScan PDurinary bladder scanner is a B-mode ultrasound machine with which the volume of the urinary bladder can be quickly and precisely measured down to the millimeter. This portable device is battery powered, has an integrated thermal printer and is easy to operate via the intuitive software and touchscreen display. You will receive the VitaScan PD urinary bladder scanner in your choice of a stand alone device or with a practical, height-adjustable mobile chassis.

Details

  • 3D urinary bladder scanner with with battery operation
  • Automatic calculation of bladder volume in ml
  • 7 Inch touchscreen display
  • Integrated thermal printer
  • Approx. 6 hours operating time with fully charged battery

Overview

  • VitaScan PD3D urinary bladder scanner
  • For non-invasive determination of bladder volume
  • B-mode ultrasound machine
  • Mechanical sectoral scan converter delivers cross-sectional images of the bladder of up to 24 scan levels
  • Calculates the estimated bladder volume in ml
  • Applicable in many clinical settings
  • Also allows for calculation of time needed to empty the bladder and recognises remaining volume
  • Storage of ultrasound images on an external storage device is possible (USB 2.0)
  • Easy intuitively operated software with touchscreen support
  • 7" touchscreen
  • Integrated thermal printer
  • Portable (integrated carrying handle)
  • Battery operated (approx. 6 hours of operating life with full charge)
  • Optionally available with or without mobile frame (VitaScan Mobile Cart)
  • Scan depth: 10 cm (children), 16 cm (adults), 23cm (obese patients)
  • Volume range: 0-1,000 ml
  • Accuracy: ±10%
  • Frequency: 2.35 MHz
  • Scan method: sectoral, 180 degrees
  • Rotational positions: 6, 12 or 24
  • Pan angle: 110 degrees
  • Recognition depth: 10, 16 or 23 cm
  • Data storage for up to 1,000 patients
  • Dimensions: 22.2 x 20.5 x 8.0 cm
  • Weight: approx. 2.4 kg
  • VitaScan PDurinary bladder scanner with integrated rechargeable battery
  • Ultrasound transducer
  • Transducer holder
  • Thermal printer
  • User handbook
  • Mains charging cable
  • Calibration certificate
  • Optionally available with height-adjustable mobile chassis (VitaScan Mobile Cart)
