SKU: 132554

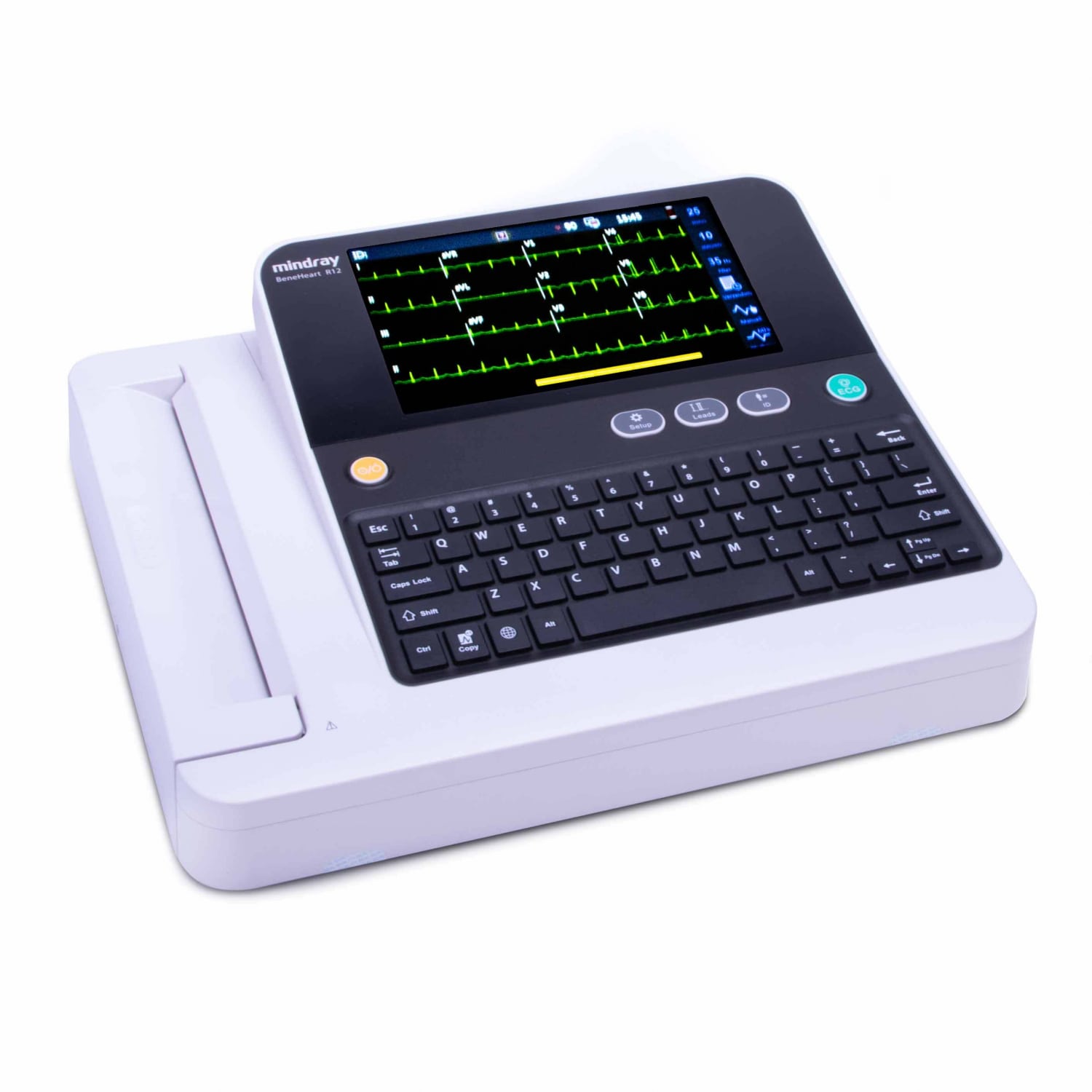

Mindray BeneHeart R12 without touch-screen

Mindray BeneHeart R12 without touch-screen


Regular price £3,208.50 GBP
Regular price Sale price £3,208.50 GBP
Sale Sold out

Product Description

The Mindray BeneHeart R12 is a 12-lead, resting ECG with an 8 inch colour TFT display, characterised by its user-friendly operator interface. The ECG print-out can be printed using theintegrated thermal printer, but it is also possible toexport the datato a PC or directly to an external printer. For this reason, the BeneHeart R12 is delivered with various USB connections.


  • 12-lead resting ECG
  • With colour display and thermal printer
  • Large internal memory (approx. 800 ECGs)
  • Incl. measurement and interpretation
  • Soft-touch hotkeys


  • 12-lead resting ECG machine
  • 8" Colour TFT backlit LCD display (touch screen option available)
  • With integrated thermal printer (prints in A4 format)
  • PDF export via USB as 12-lead printout
  • Internal memory for approx. 800 ECGs
  • ECGs can be saved on a USB stick and transferred to a PC
  • With lithium-ion battery (3.5 hours battery life or approx. 400 ECG printouts on one battery charge)
  • Includes measurement and interpretation function
  • User-friendly operator interface
  • Modern soft-touch hotkeys
  • Standard keyboard for entering patient data
  • Patient data can be called up from the working list
  • Special cable design prevents the cable from wrapping and twisting
  • Full print preview directly on the display
  • With ECG analysis (world-renowned, Glasgow 12-lead analysis system)
  • Automatic diagnosis with V4R electrode placing (ideal for paediatrics)
  • Automated new analysis after changing patient demographics, enables quick production of ECG printouts (patient information can also be entered later)
  • Digital pacemaker recognition
  • Very quick prep time (7 second start up time)
  • Paperless workflow possible
  • Very light (4.9kg)
  • Dimensions: 12.8 x 36.5 x 30.5 cm (H x W x D)
  • Mindray BeneHeart R12 ECG machine
  • Li-Ion battery
  • Patient leads, 10-pole
  • 4 Extremity, clamp electrodes
  • 6 Chest, suction electrodes
  • 6 Button adapters
  • 2x50 adhesive electrodes
  • 100 sheets of thermal paper
  • Power cable
  • Operating instructions
