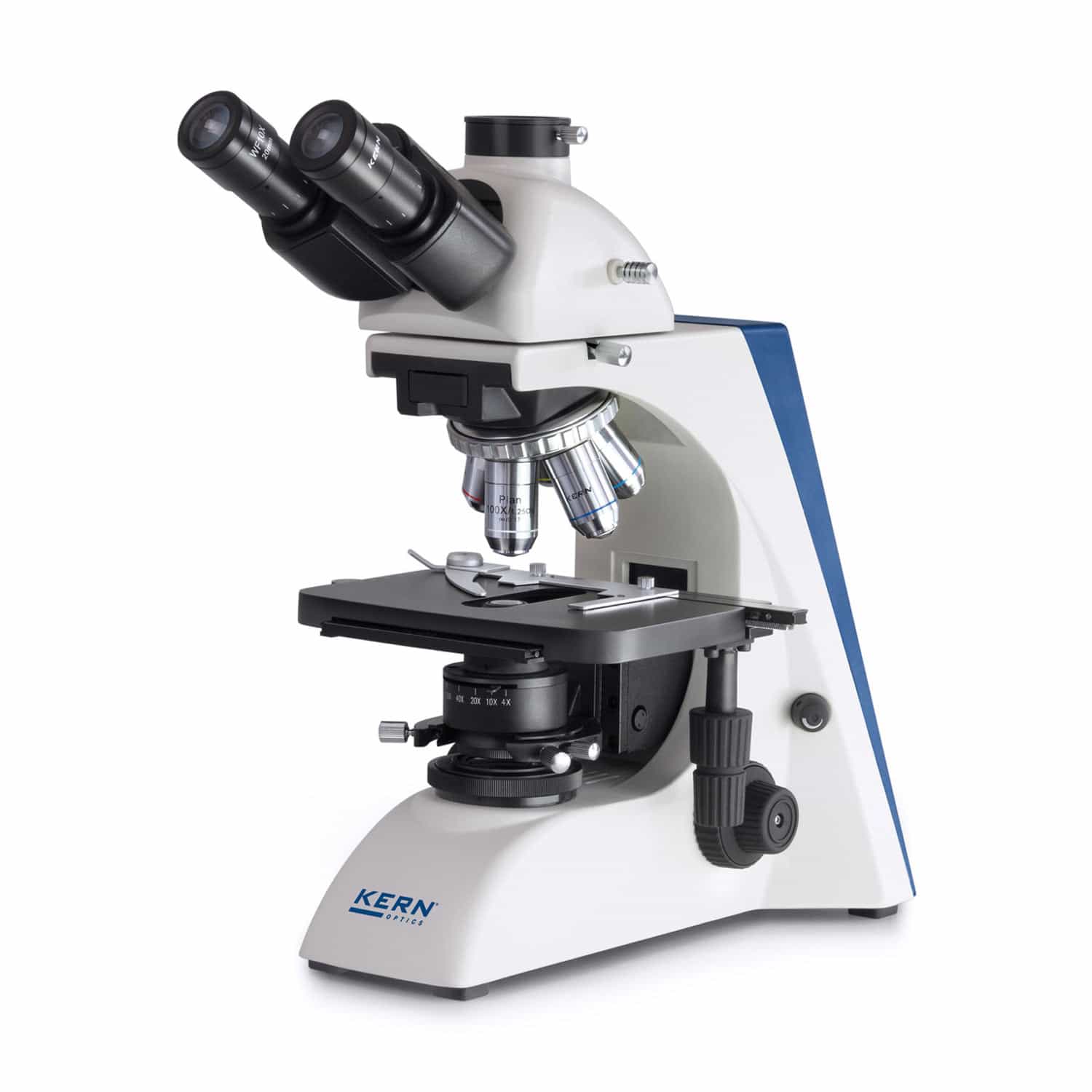

Kern OBN 135 Biological Transmitted Light Microscope
Kern OBN 135 Biological Transmitted Light Microscope
KERN
Regular price
£2,440.00 GBP
Regular price
Sale price
£2,440.00 GBP
Unit price
/
per
Couldn't load pickup availability
Product Description
The OBN 135 transmitted light microscope from Kern is designedfor particularly demanding applications. The3 W LED illuminationand theprofessional Köhler illuminationensure optimal illumination of the specimens. Thefive-fold lens revolving unitis equipped with high-qualityInfinity Plan objectives, so that the entire specimen is displayed sharply in the20 mm field of view. In addition to the standard objectives, an objective with20x magnificationis also included.
Details
- With planachromatic objectives
- 5-fold lens revolving unit
- Diopter compensation on both sides
- Eyepieces: HWF 10x / ∅ 20 mm
- Köhler illumination with adjustable field diaphragm
Overview
- Kern trinocular transmitted light microscope
- Model: OBN 135
- Ergonomic design
- 5-fold lens revolving unit
- Infinity planachromatic objectives: 4x, 10x, 20x, 40x and 100x (oil)
- Siedentopf 30° inclined, 360° rotatable
- Interpupillary distance: 50 - 75 mm
- Diopter compensation on both sides
- Beam path distribution 100:0
- Eyepieces: HWF 10x / ∅ 20 mm
- Continuously dimmable 3 W LED illumination
- Köhler illumination with adjustable field diaphragm
- Centring and height-adjustable 1.25 ABBE condenser, with adjustable aperture diaphragm
- Large mechanical-stage (17.5 x 14.5 cm), suitable for two slides
- With coaxial coarse and fine drive on both sides
- Fast and precise positioning of slides
- With spring clamp for clamping the slide
- Height-adjustable 1.25 ABBE condenser with aperture diaphragm
- Dimensions (WxDxH): 39 x 20 x 40 cm
- Weight: 9 kg
- Additional accessories, e.g. C-mount adapter, camera or darkfield adapter available separately
- Delivery includes dust cover, eyecups and multilingual operating instructions
