SKU: 141205

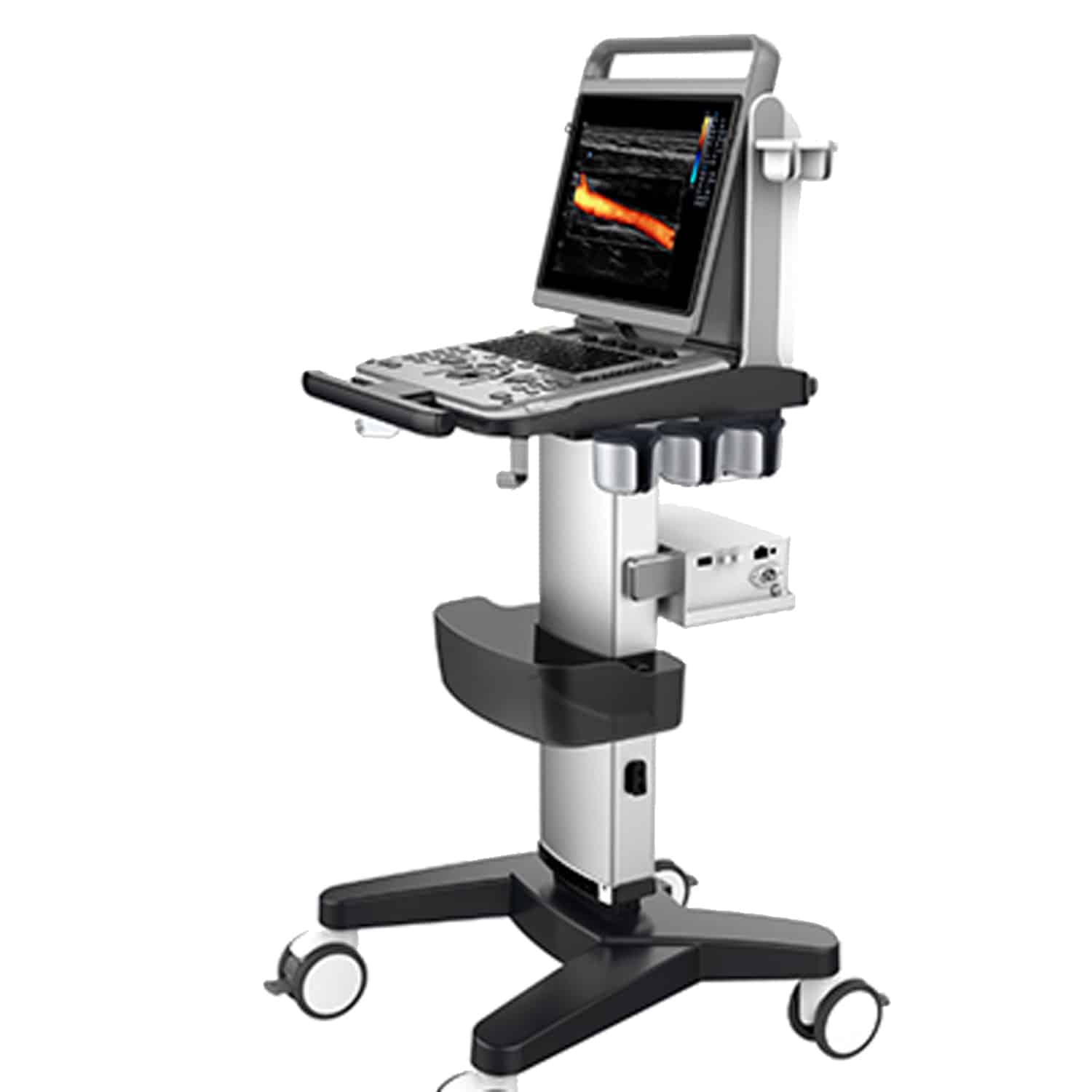

CHISON EBit 30 incl. Ultrasound Trolley with battery | without height adjustment

CHISON EBit 30 incl. Ultrasound Trolley with battery | without height adjustment

Chison Medical Technologies

Regular price £14,679.00 GBP
Regular price Sale price £14,679.00 GBP
Sale Sold out

Product Description

The CHISON EBit 30 including ultrasound trolley is anaffordably priced complete packageconsisting of the multifunctionalEBit 30 ultrasound scanner with a high-resolution 15-inch colour displayandcompatible equipment trolley. The ultrasound unit can be used to examine smaller organs as well as vessels or themusculoskeletal system. Furthermore, distance, area, circumference, volume,foetal weight and heartbeatcan be measured. Ideal areas of application for the ultrasound system include internal medicine, urology or gynaecology.

Details

  • Secure anchorage of the ultrasound scanner
  • With 15-inch display & many imaging modes
  • With FHI technology, Q-image and Q-beam
  • Optionally available with height adjustment
  • 2 probes included

Overview

  • Digital colour Doppler ultrasound system
  • Ideal for examining smaller organs (e.g. thyroid, testicles and chest)
  • Suitable for examining the brain, heart, musculoskeletal system and blood vessels
  • With high-resolution 15-inch LCD colour display
  • Up to 30° screen rotation
  • Image modes: B, B/M, M, 2B, 4B, CFM, CPA(PD), DPD, PW, B/BC, Triplex, Quadplex and Trapezoid modes
  • Measures distance, area, circumference, volume, foetal weight and heartbeat
  • Option: elastography mode, super needle, curved panoramic imaging, colour M mode, TDI, free control M mode, CW mode, 2D control
  • Determines percentage of stenoses, blood flow velocities, velocity ratios, blood flow volumes and pressure gradients
  • Measures maximum and minimum velocity automatically
  • Allows measurement of time intervals, pulse and resistance indices
  • With FHI technology, Q-image and Q-beam
  • High image resolution through volume doubling of the received signals
  • Faster image frequency due to extended chipset
  • Features zoom function and depth adjustment
  • Enables image freezing and memory function
  • With comment function in the image area
  • Displays patient ID, time, date, gestational age and expected delivery date
  • Individually adjustable frequency track, 8 TGC segments, dynamic range and perisistencyv
  • With powerful rechargeable battery (running time approx. 2 hours)
  • Compatible with Mitsubishi P93W, Sony UP-711MD, Sony UP-X898MD & Mitsubishi CP31W video printers
  • Alphanumeric keypad with backlight
  • Multilingual user interface display, user interface switching, shear plate and biopsy guided functions
  • Number of probe ports: 2
  • With footswitch
  • Powercord included
  • Interfaces: LAN connection, S-VIDEO, VIDEO OUT, 4 USB connections, DVI, VGA, remote connection, ECG connection
  • Weight: 7.8 kg
  • Dimensions: approx. 358 mm x 125 mm x 399 mm (L|W|H)
  • Option Dicom 3.0, Super-Needle and 2D-Sheer available separately
  • C3-E convex probe and L7-E linear probe included
  • CHISON Trolley TR-20
  • Probe holder & printer holder included
  • Including hook and storage basket
  • 4 castors, rotatable 360
  • 2 castors lockable
  • Large handle at the back
  • Variable positioning of holders
  • Optionally available with height adjustment
  • Dimensions: 83 x 65 x 40 cm
  • Weight: 37.3 kg
  • Gynaecology
  • Urology
  • Paediatrics
  • Radiology
  • Internal medicine
